4 in 1 Combo Antenna for vehicle with adhesive and magnetic
Product Introduction
This 4in1 combo antenna is an omni-directional, fully IP67 waterproof external antenna for use in telematics, transportation, and remote monitoring applications. It is an ideal product for the automotive industry as it utilizes.
Product Specification
| Electrical Characteristics | ||||
| Port | GSM | Mineprox | WIFI | GNSS |
| Frequency | 824-960MHz;
1710-1990MHz |
806-960MHz | 2400-2500MHz; 5150-5850MHz | 1561MHZ; 1575.42MHz |
| S.W.R. | <3.0 | <3.0 | <2.0 | <2.0 |
| Antenna Gain | 0.2 dBi@824-960MHz 0.9 dBi@1710-1990MHz | 0.6dBi | -2.6 dBi@2.4-2.5GHz
-2.9 dBi@5.15-5.85GHz |
29.5 dBi |
| Polarization | Linear | Linear | Linear | RHCP |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Material & Mechanical Characteristics | ||||
| Connector Type | SMA connector | |||
| Cable Type | 302 Type Cable, Length: 5 meters. | |||
| Dimension | 83*36mm | |||
| Environmental | ||||
| Operation Temperature | - 40 ˚C ~ + 85 ˚C | |||
| Storage Temperature | - 40 ˚C ~ + 85 ˚C | |||
| Operation Humidity | ＜95% | |||
Antenna Passive Parameter
VSWR

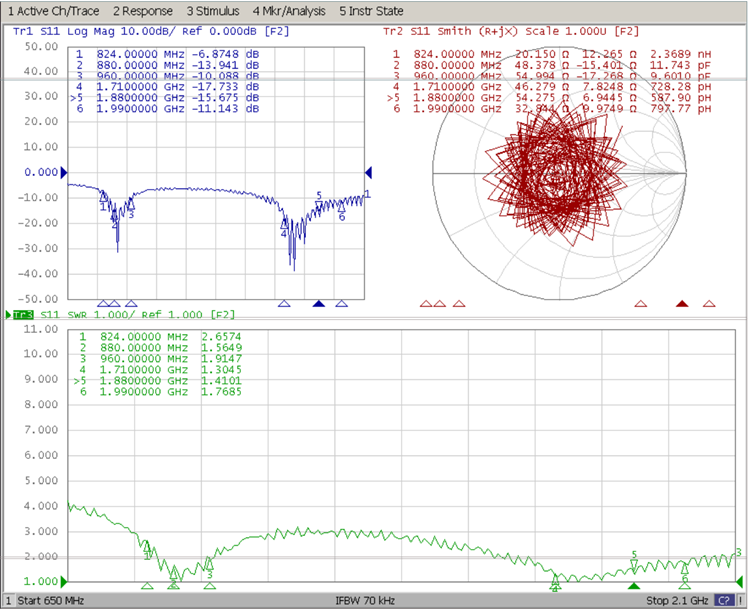

GSM

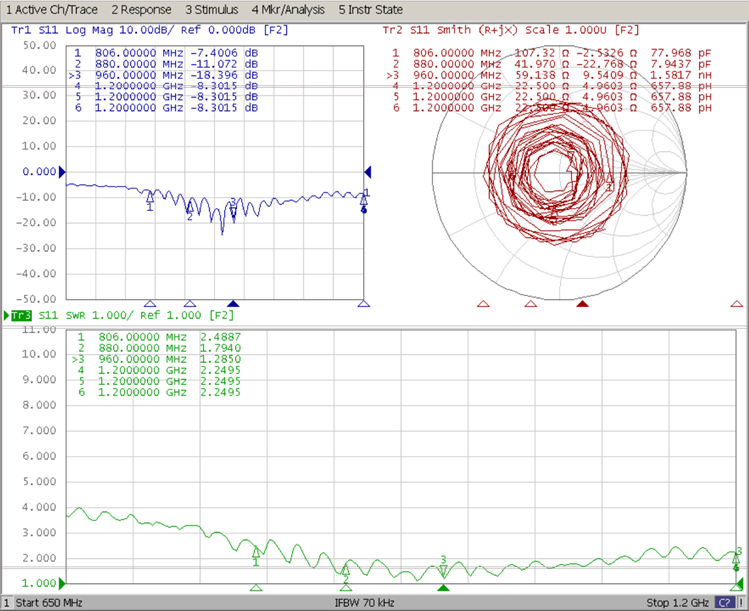

Mineprox

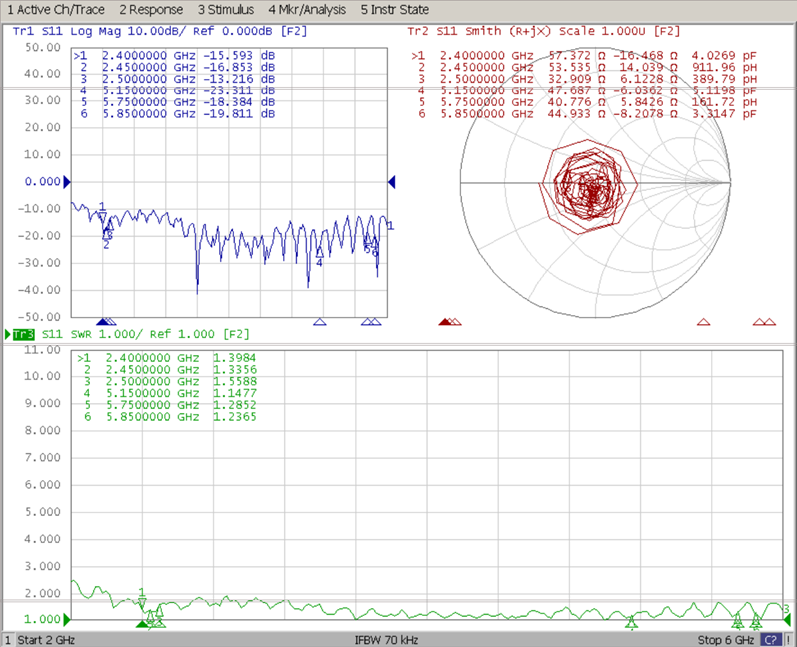

WIFI

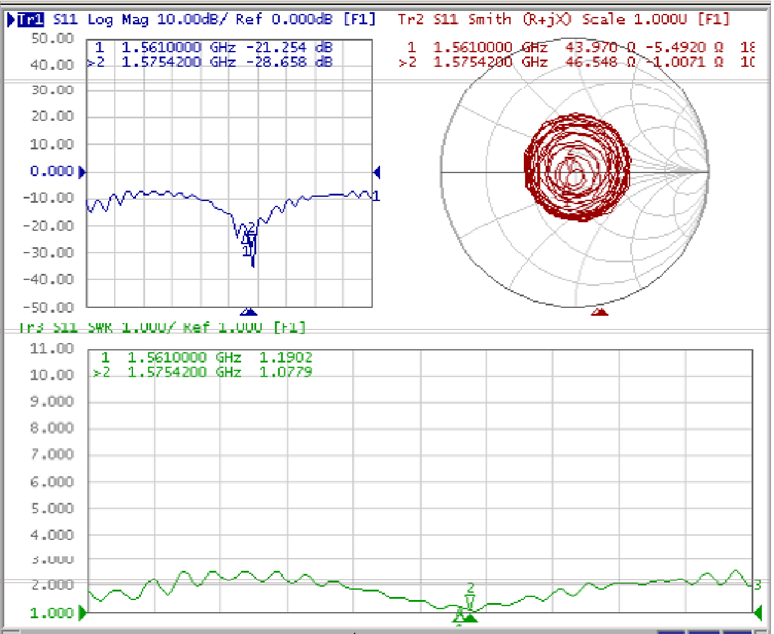

GNSS
Efficiency & Gain
|
Passive Test For GSM(850/900) |
|
Passive Test For GSM(1800/1900) |
||||||
| Freq (MHz) | Effi (%) | Effi (dB) | Gain (dBi) | Freq (MHz) | Effi (%) | Effi (dB) | Gain (dBi) | |
| 820 | 16.4 | -7.9 | -2.0 | 1710 | 26.9 | -5.7 | -0.4 | |
| 830 | 22.1 | -6.6 | -1.7 | 1730 | 31.9 | -5.0 | 0.9 | |
| 840 | 21.6 | -6.7 | -1.0 | 1750 | 32.7 | -4.9 | 0.3 | |
| 850 | 26.9 | -5.7 | 0.2 | 1770 | 32.7 | -4.9 | 0.5 | |
| 860 | 17.7 | -7.5 | -2.5 | 1790 | 33.0 | -4.8 | 0.5 | |
| 870 | 21.5 | -6.7 | -2.0 | 1810 | 32.9 | -4.8 | 0.7 | |
| 880 | 17.6 | -7.5 | -3.3 | 1830 | 31.5 | -5.0 | 0.6 | |
| 890 | 26.3 | -5.8 | -0.3 | 1850 | 30.0 | -5.2 | 0.0 | |
| 900 | 20.1 | -7.0 | -1.8 | 1870 | 28.4 | -5.5 | -0.4 | |
| 910 | 24.8 | -6.1 | -0.3 | 1890 | 25.2 | -6.0 | -0.5 | |
| 920 | 21.5 | -6.7 | -2.2 | 1910 | 24.3 | -6.1 | -0.3 | |
| 930 | 18.4 | -7.4 | -2.7 | 1930 | 21.7 | -6.6 | -1.2 | |
| 940 | 20.8 | -6.8 | -2.2 | 1950 | 19.1 | -7.2 | -2.2 | |
| 950 | 18.9 | -7.2 | -1.4 | 1970 | 18.8 | -7.3 | -2.2 | |
| 960 | 19.0 | -7.2 | -0.8 | 1990 | 17.7 | -7.5 | -1.8 | |
|
Passive Test For Mineprox |
|||
| Freq (MHz) | Effi (%) | Effi (dB) | Gain (dBi) |
| 800 | 15.8 | -8.0 | -2.7 |
| 810 | 16.1 | -7.9 | -2.4 |
| 820 | 20.1 | -7.0 | -1.9 |
| 830 | 22.1 | -6.6 | -0.8 |
| 840 | 18.0 | -7.4 | -2.3 |
| 850 | 16.7 | -7.8 | -2.8 |
| 860 | 20.8 | -6.8 | -1.5 |
| 870 | 25.0 | -6.0 | -1.0 |
| 880 | 20.5 | -6.9 | -1.8 |
| 890 | 19.2 | -7.2 | -2.0 |
| 900 | 20.1 | -7.0 | -1.2 |
| 910 | 23.4 | -6.3 | -0.6 |
| 920 | 23.3 | -6.3 | -0.3 |
| 930 | 19.7 | -7.1 | -0.5 |
| 940 | 19.2 | -7.2 | -1.4 |
| 950 | 20.9 | -6.8 | -0.5 |
| 960 | 24.3 | -6.2 | 0.6 |
|
Passive Test For WIFI2.4G |
|
Passive Test For WIFI5G |
||||||
| Freq (MHz) | Effi (%) | Effi (dB) | Gain (dBi) | Freq (MHz) | Effi (%) | Effi (dB) | Gain (dBi) | |
| 2400 | 16.8 | -7.7 | -2.7 | 5150 | 16.4 | -7.9 | -3.1 | |
| 2410 | 17.3 | -7.6 | -2.8 | 5200 | 16.5 | -7.8 | -2.9 | |
| 2420 | 16.8 | -7.7 | -3.2 | 5250 | 16.1 | -7.9 | -3.1 | |
| 2430 | 16.1 | -7.9 | -3.3 | 5300 | 15.7 | -8.0 | -3.4 | |
| 2440 | 16.8 | -7.8 | -2.9 | 5350 | 15.1 | -8.2 | -3.6 | |
| 2450 | 18.0 | -7.5 | -2.6 | 5400 | 16.4 | -7.9 | -3.4 | |
| 2460 | 16.8 | -7.7 | -2.6 | 5450 | 15.3 | -8.2 | -4.1 | |
| 2470 | 16.7 | -7.8 | -2.6 | 5500 | 13.2 | -8.8 | -4.9 | |
| 2480 | 16.3 | -7.9 | -2.7 | 5550 | 16.4 | -7.8 | -3.5 | |
| 2490 | 15.7 | -8.0 | -3.2 | 5600 | 16.6 | -7.8 | -3.8 | |
| 2500 | 14.7 | -8.3 | -3.2 | 5650 | 15.0 | -8.3 | -3.8 | |
| 5700 | 15.5 | -8.1 | -3.7 | |||||
| 5750 | 16.3 | -7.9 | -3.4 | |||||
| 5800 | 15.1 | -8.2 | -4.0 | |||||
|
Passive Test For GNSS |
|
|
Freq (MHz) |
Gain (dBi) |
|
1560 |
26.4 |
|
1565 |
26.9 |
|
1570 |
27.5 |
|
1575 |
29.5 |
|
1580 |
28.8 |
|
1585 |
28.7 |
|
1590 |
27.6 |
|
1595 |
26.5 |
|
1600 |
26.4 |
|
1605 |
26.6 |

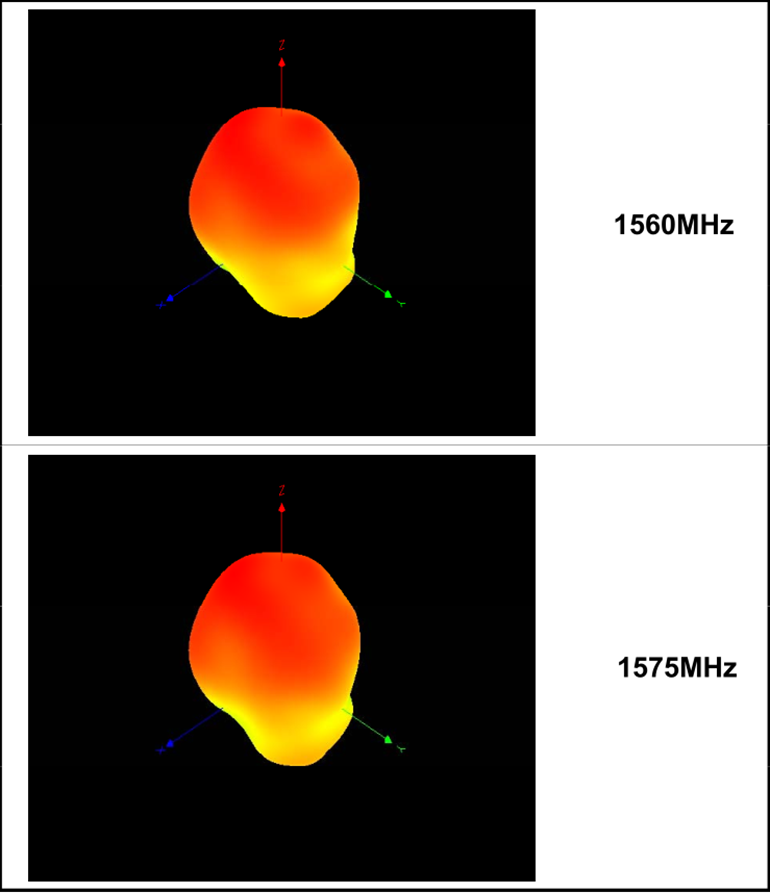

GNSS 3D Radiation Pattern
