4G 5G External Antenna 1.9-4.1dBi 13×193
Product Introduction
The 5G external antenna is designed primarily for use with modules and devices that require high efficiency and peak gain from a cellular antenna. It delivers best in class throughput on all major cellular bands worldwide, perfect for access points, terminals, and routers. The antenna covers all cellular bands from 700-4900MHz.
Typical Applications include:
- Gateways & Routers - Exterior Cameras - Vending Machines
- Industrial IoT - Smart Home - Wastewater Monitoring
Product Specification
| Electrical Characteristics | |
| Frequency | 700-960Hz; 1710-2690MHz; 3300-3800MHz; 4200-4900M |
| S.W.R. | 6.0 Max@700-960Hz; 2.0 Max@1710-2690MHz; 3.0 Max@3300-3800MHz; 4200-4900M |
| Antenna Gain | 4G: 1.9dBi@700-960Hz
3.5dBi@1710-2690MHz 5G: 3.5dBi@3300-3800MHz 4.1dBi@4200-4900MHz |
| Polarization | Linear |
| Impedance | 50 Ohm |
| Material & Mechanical Characteristics | |
| Material of Radiator | PCB |
| Material of Plastic | PC+ABS |
| Cable Type | RG-178 Cable |
| Connector Type | SMA Male Connector |
| Connector Pull Test | >=3.0Kg |
| Connector Torque Test | 300~1000 g.cm |
| Environmental | |
| Operation Temperature | - 40 ˚C ~ + 65 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
Antenna Passive Parameter
VSWR

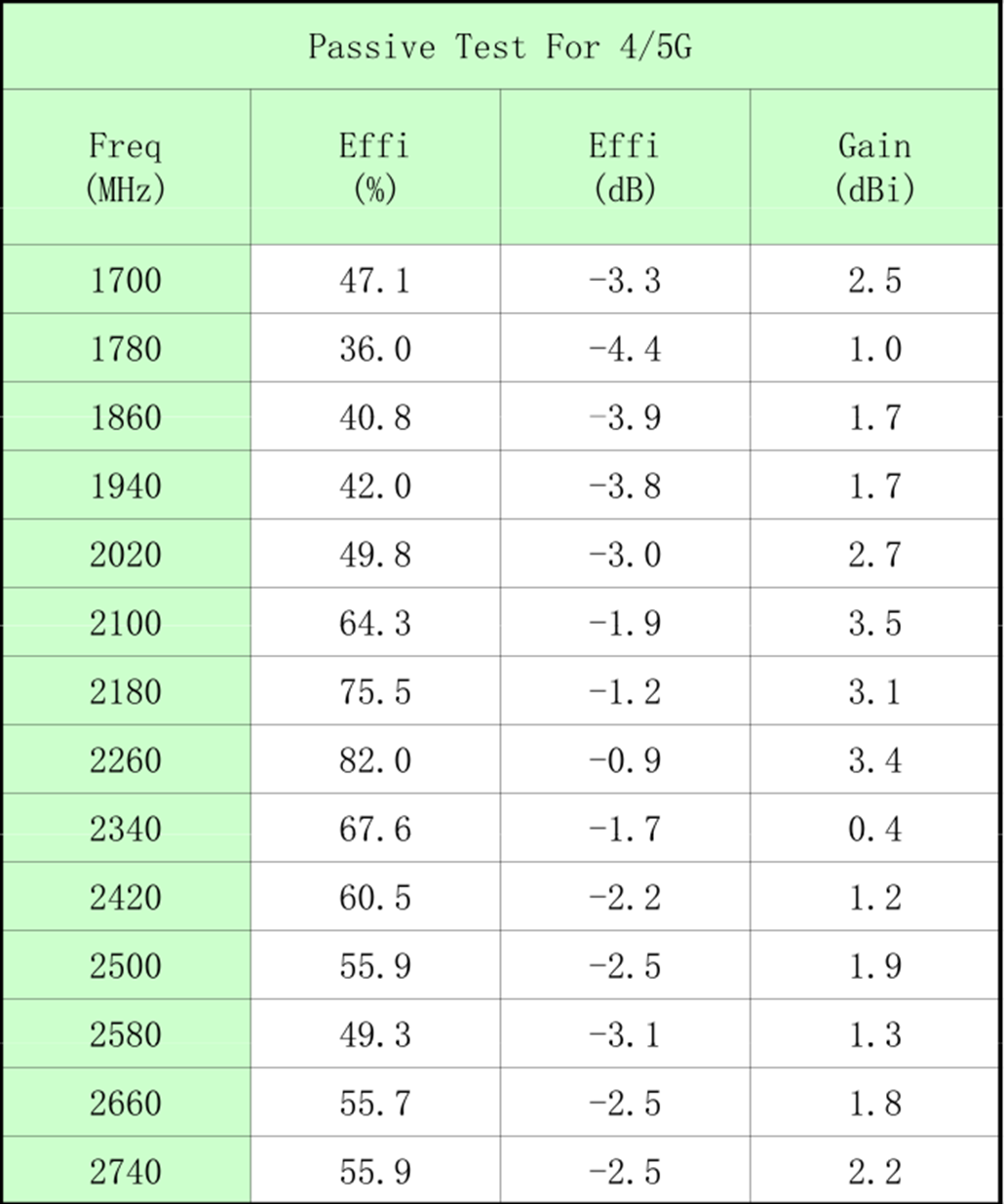

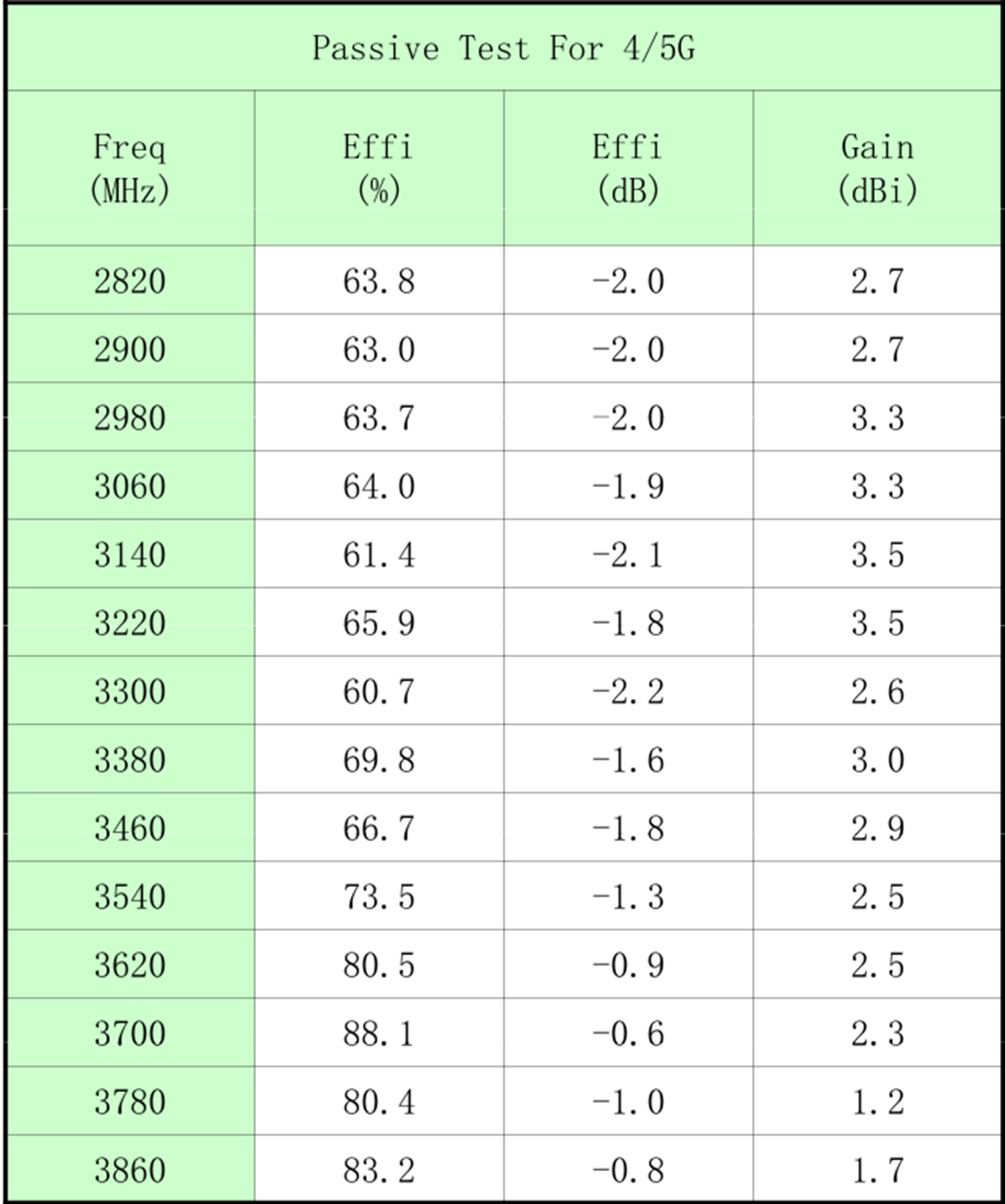

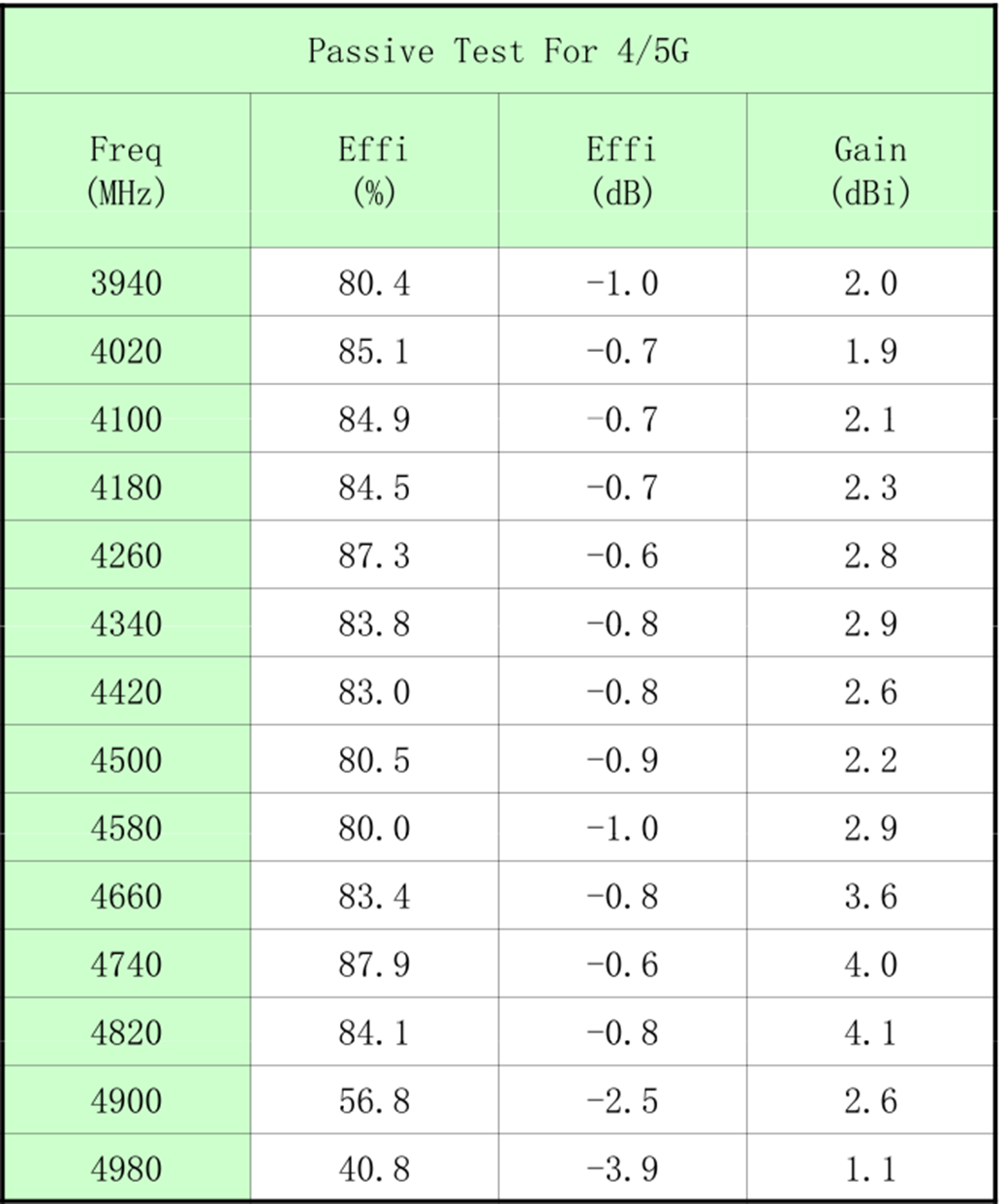

Efficiency & Gain
Radiation Pattern
