4G LTE External Antenna 3-5dBi SMA
Product Introduction
4G LTE external antenna cover multiple frequency bands (700-960Mhz, 1710-2700MHZ), and has a gain effect of up to 5dBi. Whether it is 3G, GSM, or 4G LTE, this antenna is perfectly compatible.
To ensure long-lasting service life and stability, we use high-quality UV-resistant materials for the plastic parts. This means that whether it is used indoors or outdoors, the antenna will always be in good working order.
This antenna is widely used in a variety of scenarios. The following are some typical application examples:
- Gateways and Routers: Improve overall coverage and speed of your home or office network
- Internal building connection system: ensures fast and stable network connection within the building.
- Payment Terminal: Provides reliable network connection for smooth transaction experience.
- Connected Industry: Support smooth communication for smart manufacturing and IoT applications.
- Smart Metering: Helps smart metering systems obtain and transmit data more accurately.
Product Specification
|
Electrical Characteristics |
||
| Frequency | 700-960MHz | 1710-2700MHz |
| S.W.R. | <= 3.5 | <= 2.5 |
| Antenna Gain | 3dBi | 5dBi |
| Efficiency | ≈50% | ≈60% |
| Polarization | Linear | Linear |
| Impedance | 50 Ohm | 50 Ohm |
|
Material & Mechanical Characteristics |
||
| Connector Type | SMA Connector | |
| Dimension | ¢13*206mm | |
| Color | Light Black | |
| Weight | 0.05Kg | |
|
Environmental |
||
| Operation Temperature | - 40 ˚C ~ + 80 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |
Antenna Passive Parameter
VSWR

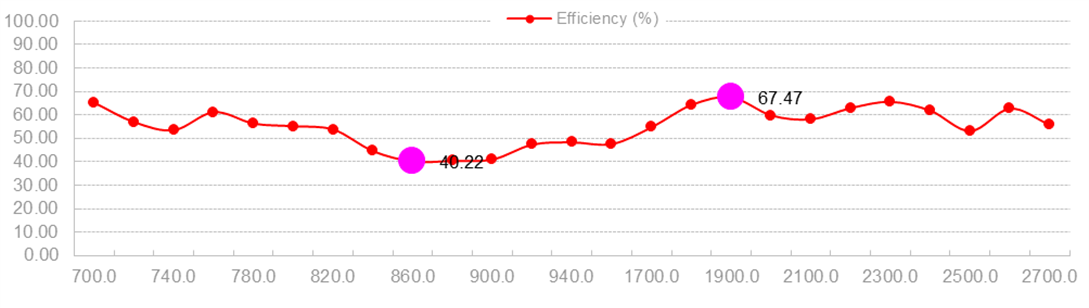

Efficiency & Gain
| Frequency (MHz) |
700.0 |
720.0 |
740.0 |
760.0 |
780.0 |
800.0 |
820.0 |
840.0 |
860.0 |
880.0 |
900.0 |
920.0 |
940.0 |
960.0 |
| Gain (dBi) |
2.45 |
2.03 |
2.27 |
3.18 |
3.11 |
2.96 |
3.04 |
2.70 |
2.27 |
2.05 |
1.91 |
2.06 |
2.11 |
2.07 |
| Efficiency (%) |
65.20 |
56.96 |
53.57 |
61.22 |
56.34 |
55.20 |
53.79 |
44.58 |
40.22 |
40.42 |
41.03 |
47.38 |
48.33 |
47.63 |
| Frequency (MHz) |
1700.0 |
1800.0 |
1900.0 |
2000.0 |
2100.0 |
2200.0 |
2300.0 |
2400.0 |
2500.0 |
2600.0 |
2700.0 |
1700.0 |
| Gain (dBi) |
3.47 |
4.40 |
4.47 |
4.15 |
4.50 |
5.01 |
4.88 |
4.24 |
2.26 |
2.72 |
3.04 |
3.47 |
| Efficiency (%) |
54.82 |
64.32 |
67.47 |
59.83 |
58.16 |
62.95 |
65.60 |
61.80 |
53.15 |
62.70 |
55.71 |
54.82 |

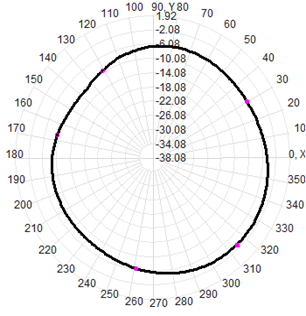

Radiation Pattern
|
|

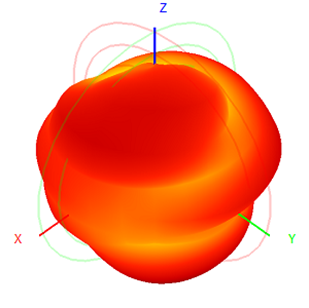

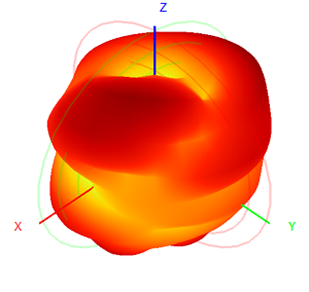

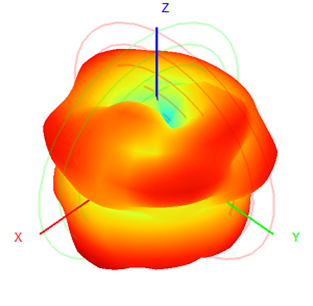

3D |

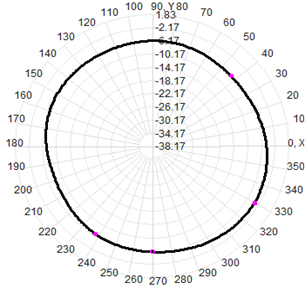

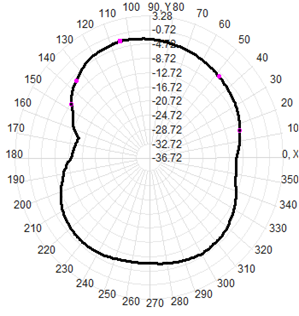

2D-Horizontal |

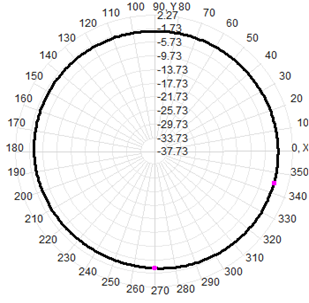

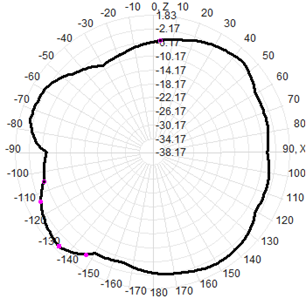

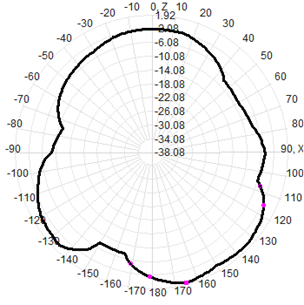

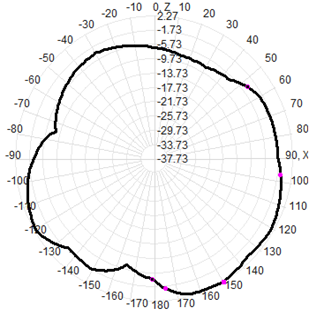

2D-Vertical |
|
700MHz |
 |
 |
 |
|
840MHz |
 |
 |
 |
|
960MHz |
 |
 |
 |
|
|

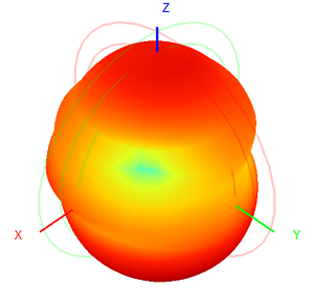

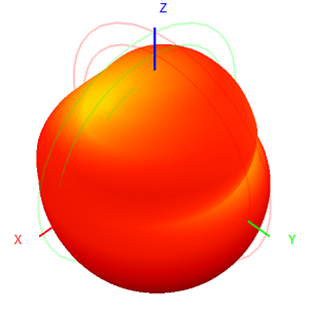

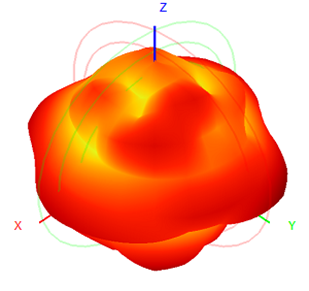

3D |

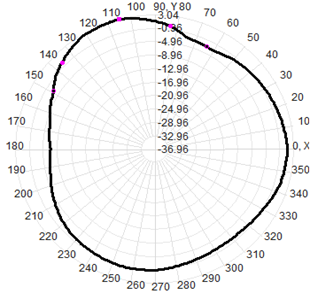

2D-Horizontal |

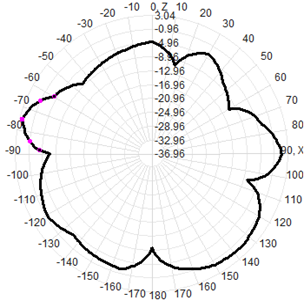

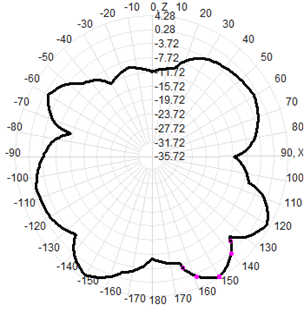

2D-Vertical |
|
1700MHz |
 |
 |
 |
|
2200MHz |
 |
 |
 |
|
2700MHz |
 |
 |
 |
