5G External Antenna 3-5dBi 22.5×195
Product Introduction
The 5G external antenna is designed primarily for use with modules and devices that require high efficiency and peak gain from a cellular antenna. It delivers best in class throughput on all major cellular bands worldwide, perfect for access points, terminals, and routers. The antenna covers all cellular bands from 600-6000MHz.
Typical Applications include:
- Gateways & Routers - Exterior Cameras - Vending Machines
- Industrial IoT - Smart Home - Wastewater Monitoring
Product Specification
| Electrical Characteristics | |||
| Frequency | 617-960MHz | 1710-3300MHz | 3300-6000MHz |
| Impedance | 50 Ohm | 50 Ohm | 50 Ohm |
| S.W.R. | <2.5 | <2.5 | <5.5 |
| Gain | 3.5dBi | 5dBi | 3dBi |
| Efficiency | ≈48% | ≈58% | ≈31% |
| Horizontal Beamwidth | 360° | 360° | 360° |
| Vertical Beamwidth | 47°@868MHz | 20°@1980MHz | 12°@4500MHz |
| Polarization | Linear | ||
| Max Power | 50W | ||
| Material & Mechanical Characteristics | |||
| Connector Type | N connector | ||
| Dimension | Φ22.5*195mm | ||
| Weight | 0.07Kg | ||
| Radome material | ABS | ||
| Environmental | |||
| Operation Temperature | - 40 ˚C ~ + 80 ˚C | ||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | ||
Antenna Passive Parameter
VSWR

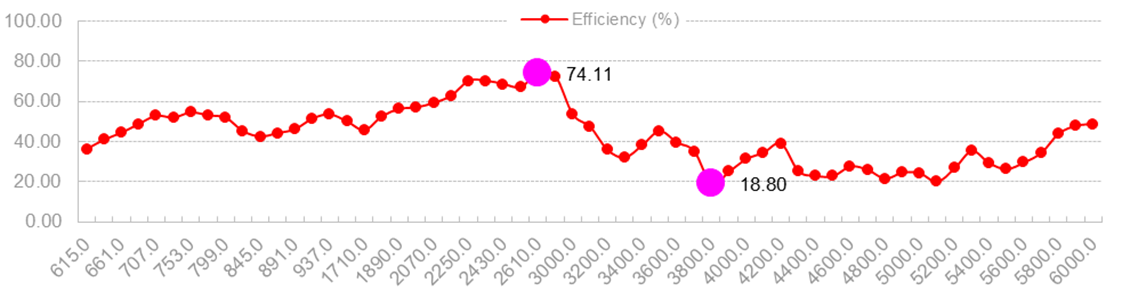

Efficiency & Gain
| Frequency (MHz) |
615 |
638 |
661 |
684 |
707 |
730 |
753 |
776 |
799 |
822 |
845 |
868 |
891 |
914 |
937 |
960 |
| Gain (dBi) |
1.59 |
2.04 |
1.19 |
1.46 |
0.73 |
0.91 |
1.23 |
1.37 |
1.55 |
1.18 |
0.57 |
1.20 |
1.32 |
2.45 |
3.39 |
3.56 |
| Efficiency (%) |
36.28 |
40.93 |
44.39 |
48.72 |
52.77 |
51.87 |
54.43 |
52.96 |
51.81 |
45.17 |
42.51 |
44.19 |
46.12 |
51.38 |
53.45 |
49.92 |
| Frequency (MHz) |
1710 |
1800 |
1890 |
1980 |
2070 |
2160 |
2250 |
2340 |
2430 |
2520 |
2610 |
2700 |
| Gain (dBi) |
3.56 |
4.22 |
4.70 |
5.08 |
5.16 |
4.63 |
3.75 |
3.49 |
3.51 |
3.47 |
2.88 |
2.32 |
| Efficiency (%) |
45.67 |
52.46 |
56.16 |
56.95 |
59.20 |
62.75 |
70.06 |
70.15 |
68.53 |
66.97 |
74.11 |
72.29 |
| Frequency (MHz) |
3000 |
3100 |
3200 |
3300 |
3400 |
3500 |
3600 |
3700 |
3800 |
3900 |
4000 |
4100 |
4200 |
4300 |
4400 |
4500 |
| Gain (dBi) |
0.65 |
1.34 |
1.03 |
1.13 |
0.87 |
0.68 |
-0.16 |
-0.80 |
-3.24 |
-1.05 |
0.27 |
0.85 |
1.63 |
1.02 |
1.08 |
0.98 |
| Efficiency (%) |
53.41 |
47.30 |
35.84 |
32.08 |
38.19 |
45.14 |
39.54 |
35.08 |
18.80 |
25.04 |
31.27 |
34.55 |
38.94 |
25.28 |
22.96 |
22.84 |
| Frequency (MHz) |
4600 |
4700 |
4800 |
4900 |
5000 |
5100 |
5200 |
5300 |
5400 |
5500 |
5600 |
5700 |
5800 |
5900 |
6000 |
| Gain (dBi) |
0.73 |
0.17 |
-1.11 |
-1.30 |
-1.23 |
-1.18 |
1.38 |
2.69 |
-0.34 |
-0.84 |
0.15 |
1.13 |
2.95 |
3.87 |
3.95 |
| Efficiency (%) |
27.65 |
25.92 |
21.57 |
24.64 |
24.21 |
20.05 |
26.76 |
35.27 |
29.21 |
26.32 |
29.59 |
34.47 |
43.94 |
47.77 |
48.69 |
Radiation Pattern
|
|
3D |
2D-Horizontal |
2D-Vertical |
|
615MHz |
 |
 |
 |
|
868MHz |
 |
 |
 |
|
960MHz |
 |
 |
 |
|
|
3D |
2D-Horizontal |
2D-Vertical |
|
1710MHz |
 |
 |
 |
|
2250MHz |
 |
 |
 |
|
2700MHz |
 |
 |
 |
|
|
3D |
2D-Horizontal |
2D-Vertical |
|
3000MHz |
 |
 |
 |
|
4500MHz |
 |
 |
 |
|
6000MHz |
 |
 |
 |
