Directional Flat Panel Antenna 5150-5850MHz 15dBi 97x97x23mm
Product Introduction
This product is a directional antenna, mainly suitable for the 5.8GHZ frequency band. Its gain is 15dBi, which can provide stronger signal reception and transmission capabilities. The antenna Radome adopts an anti-UV shell design, which can effectively prevent UV damage to the antenna, thereby extending the service life of the antenna. In addition, this product is also waterproof and reaches the IP67 waterproof standard, which can provide stable and reliable work in various complex environments. Whether it is outdoor use or industrial applications, this product can meet your needs.
Product Specification
| Electrical Characteristics | |
| Frequency | 5150-5850MHz |
| S.W.R. | <2.0 |
| Antenna Gain | 15dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 30±6° |
| Vertical Beamwidth | 40±5° |
| F/B | >20dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| Material & Mechanical Characteristics | |
| Connector Type | N connector |
| Dimension | 97*97*23mm |
| Radome material | ABS |
| Weight | 0.105Kg |
| Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
Antenna Passive Parameter
VSWR
Efficiency & Gain
| Frequency(MHz) | Gain(dBi) |
|
5150 |
13.6 |
|
5200 |
13.8 |
|
5250 |
14.1 |
|
5300 |
14.3 |
|
5350 |
14.5 |
|
5400 |
14.8 |
|
5450 |
14.9 |
|
5500 |
15.1 |
|
5550 |
15.5 |
|
5600 |
15.4 |
|
5650 |
15.4 |
|
5700 |
15.3 |
|
5750 |
15.5 |
|
5800 |
14.9 |
|
5850 |
14.9 |
Radiation Pattern
|
|

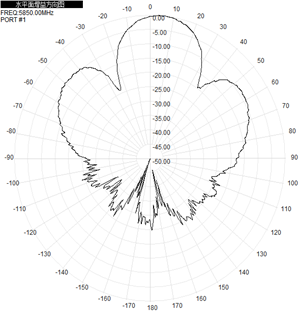

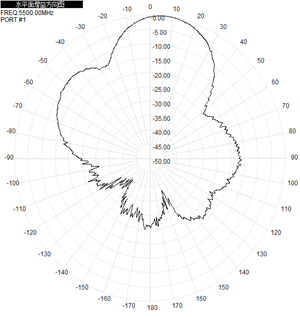

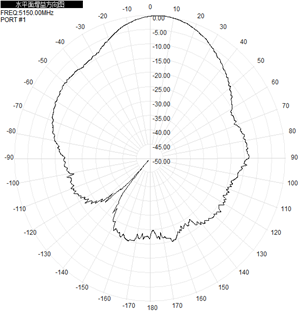

2D-Horizontal |

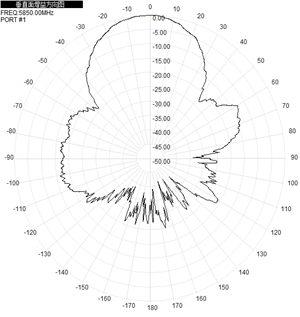

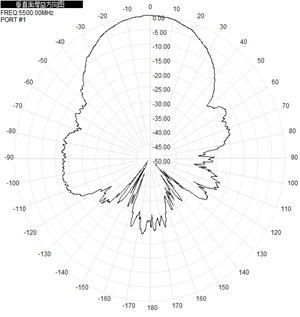

2D-Vertical |
Horizontal & Vertical |
|

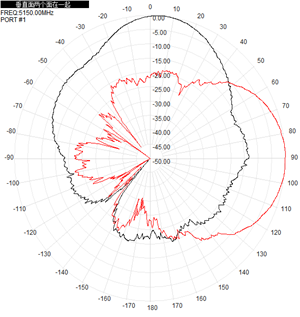

5150MHz |
 |
 |
 |
|

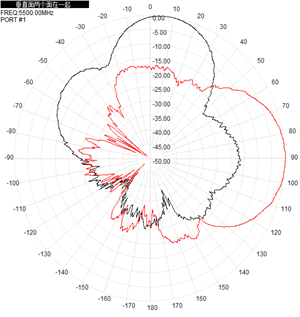

5500MHz |
 |
 |
 |
|

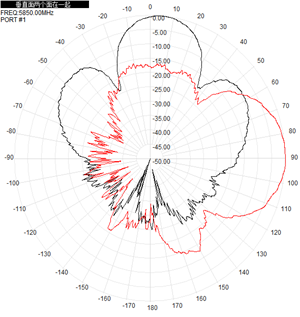

5850MHz |
 |
 |
 |
