Gooseneck omni-directional antenna 6700-7200MHz 6dBi

Short Description:

Frequency: 6700-7200MHz

Gain: 6dBi

Efficiency: 50%

Length: 300mm


Product Detail

Product Tags

Product Introduction

The frequency range of the gooseneck antenna is 6700-7200MHz, and the gain can reach 6dBi. Users can adjust the length and shape of the antenna as needed to suit different frequency ranges for optimal performance. This adjustability makes gooseneck antennas ideal for many applications including military, emergency rescue, wilderness adventure and radio hobbyists.

Gooseneck antennas are made from soft yet strong materials and are designed to withstand harsh environmental conditions. They are often water, stain and impact resistant to ensure reliability and durability in outdoor environments.
In addition, gooseneck antennas are smaller in size and lighter in weight, making them easier to carry and install. Due to the flexible design of the gooseneck antenna, users can bend it into different shapes to adapt to different installation needs. Whether the antenna is affixed to a vehicle, building, or other object, or the antenna needs to be bent to fit into a small space, gooseneck antennas are highly adaptable.

Product Specification

Electrical Characteristics

Frequency 6700-7200MHz
S.W.R. <= 1.5
Antenna Gain 6dBi
Efficiency ≈50%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 14-17°
Impedance 50 Ohm

Material & Mechanical Characteristics

Connector Type N Connector
Dimension ¢20*300mm
Weight 0.1Kg

Environmental

Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

Antenna Passive Parameter

VSWR

VSWR

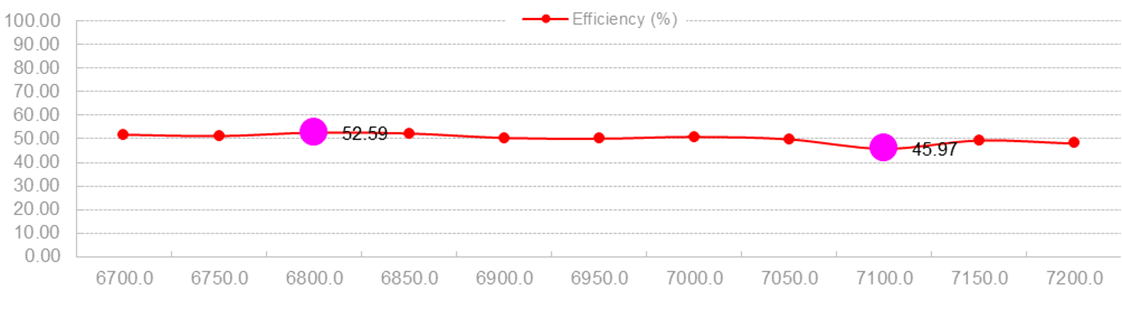

Efficiency & Gain

Frequency(MHz)

6700.0

6750.0

6800.0

6850.0

6900.0

6950.0

7000.0

7050.0

7100.0

7150.0

7200.0

Gain (dBi)

5.74

5.62

5.70

5.73

5.55

5.62

5.81

5.80

5.50

5.88

5.82

Efficiency (%)

51.76

51.19

52.59

52.26

50.41

50.13

50.86

49.87

45.97

49.37

48.09

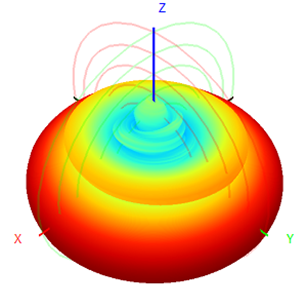

Radiation Pattern

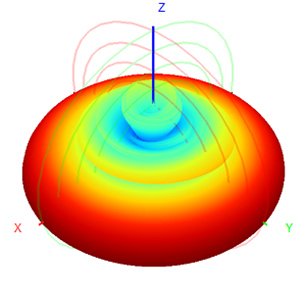

3D

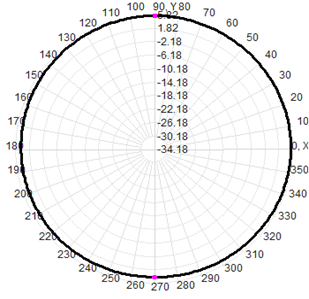

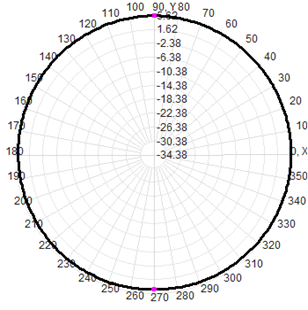

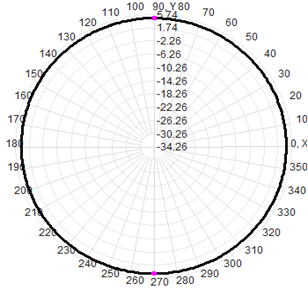

2D-Horizontal

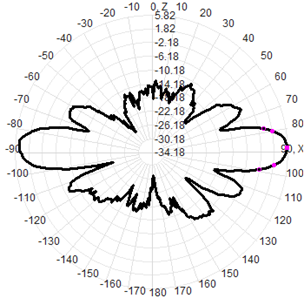

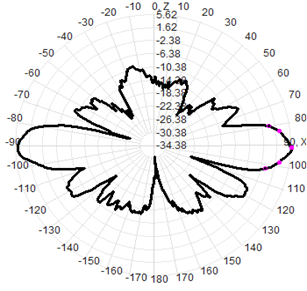

2D-Vertical

6700MHz



6950MHz



7200MHz
