GPS Passive Antenna 1575.42 MHz 2dBi 13×209
Product Introduction
Boges GNSS antenna adopts a diversity of forms to guarantee the most suitable polarization type.
Boges’s positioning products support single-band or multi-band operation modes to meet various high-precision positioning requirements of customers’ products. Boges also provides both passive and active antennas to satisfy the customer demand for high gain. Such antenna supports different installation or connection methods such as pin mount, surface mount, magnetic mount, internal cable, and external SMA. Customized connector type and cable length are provided according to requirements.
We provide comprehensive antenna design support such as simulation, testing and manufacturing for custom antenna solutions to meet your specific application needs.
Product Specification
| Electrical Characteristics | |
| Frequency | 1575.42MHz |
| Impedance | 50 Ohm |
| S.W.R. | <2.0 |
| Gain | 2dBi |
| Efficiency | ≈75% |
| Polarization | Linear |
| Max Power | 5W |
| Material & Mechanical Characteristics | |
| Connector Type | SMA connector |
| Dimension | Φ13*209mm |
| Weight | 0.02Kg |
| Antenna Color | Black |
| Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
Antenna Passive Parameter
VSWR

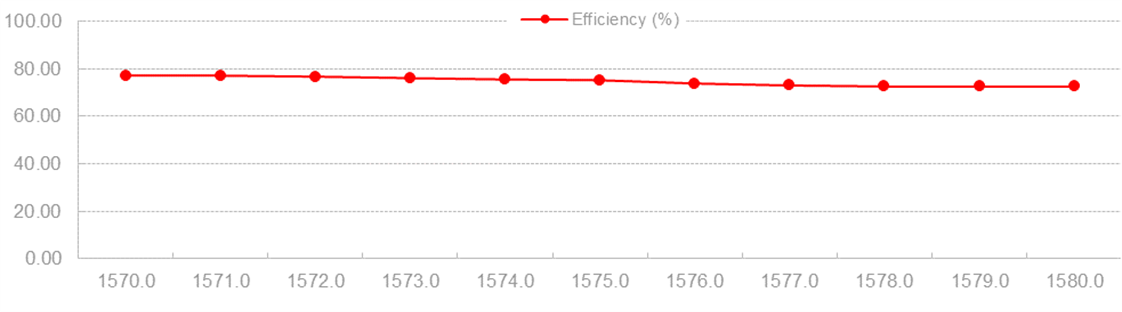

Efficiency & Gain
| Frequency (MHz) |
1570.0 |
1571.0 |
1572.0 |
1573.0 |
1574.0 |
1575.0 |
1576.0 |
1577.0 |
1578.0 |
1579.0 |
1580.0 |
| Gain (dBi) |
2.07 |
2.05 |
2.02 |
1.97 |
1.94 |
1.91 |
1.82 |
1.77 |
1.74 |
1.72 |
1.72 |
| Efficiency (%) |
77.01 |
76.91 |
76.51 |
75.93 |
75.37 |
75.05 |
73.79 |
72.99 |
72.59 |
72.48 |
72.48 |
Radiation Pattern
|
|
3D |
2D-Horizontal |
2D-Vertical |
|
1570MHz |
 |
 |
 |
|
1575MHz |
 |
 |
 |
|
1580MHz |
 |
 |
 |
