Magnetic antenna 433MHz RG174 Cable 30×170
Product Introduction
The 433MHz magnetic antenna with a SMA type connector for indoor and outdoor use. It features excellent efficiency and peak gain.
Common applications are wireless sensor monitoring, smart metering, remote asset monitoring, and security systems.
Product Specification
| Electrical Characteristics | |
| Frequency | 433MHz |
| Impedance | 50 Ohm |
| S.W.R. | <2.0 |
| Gain | -1.5dBi |
| Efficiency | ≈30% |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 45-48° |
| Max Power | 50W |
| Material & Mechanical Characteristics | |
| Connector Type | SMA connector |
| Cable Type | RG174 Cable |
| Dimension | Φ30*170mm |
| Weight | 0.045Kg |
| Antenna material | Carbon Steel |
| Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
Antenna Passive Parameter
VSWR

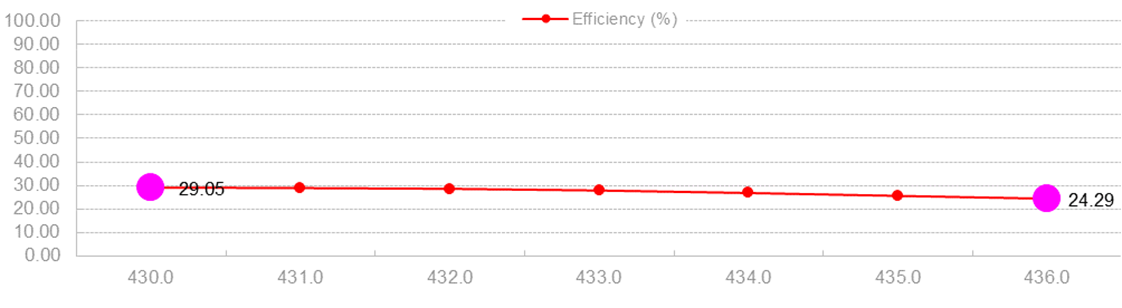

Efficiency & Gain
| Frequency(MHz) |
430.0 |
431.0 |
432.0 |
433.0 |
434.0 |
435.0 |
436.0 |
| Gain (dBi) |
-1.78 |
-1.77 |
-1.78 |
-1.85 |
-1.97 |
-2.12 |
-2.28 |
| Efficiency (%) |
29.05 |
28.86 |
28.51 |
27.80 |
26.73 |
25.52 |
24.29 |
Radiation Pattern
|
|

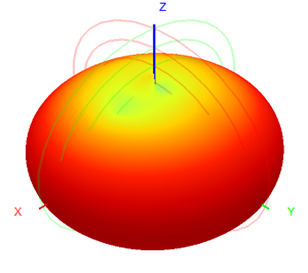

3D |

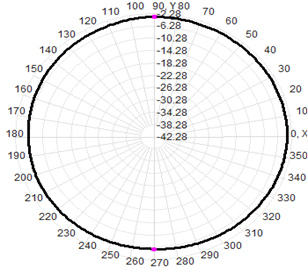

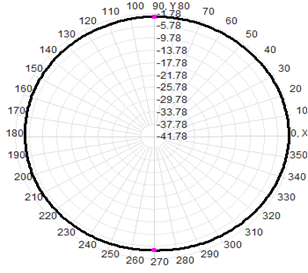

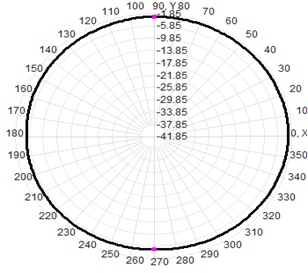

2D-Horizontal |
2D-Vertical |
|

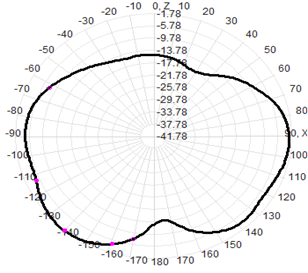

430MHz |
 |
 |
 |
|

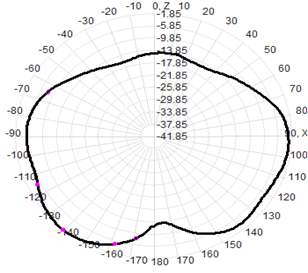

433MHz |
 |
 |
 |
|

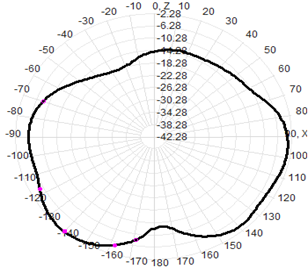

436MHz |
 |
 |
 |
