Omnidirectional fiberglass Antenna 390-420MHz 5dBi

Short Description:

Frequency: 390-420MHz

Omni-directional Antenna

Gain: 5dBi

IP67 Waterproof

Dimension: 32*1800mm


Product Detail

Product Tags

Product Introduction

The antenna has a frequency range of 390-420MHz and a gain of 5dBi, ensuring optimal performance for a variety of applications.

Our omnidirectional fiberglass antennas are crafted with an impressive 85% efficiency, ensuring a reliable and long-lasting connection. Its IP67 waterproof rating guarantees resistance to harsh weather conditions, making it suitable for outdoor use in any environment.

One of the outstanding qualities of our omnidirectional fiberglass antenna is its ability to transmit and receive signals in all directions simultaneously due to its omnidirectional design. This ensures wider coverage and more efficient signal distribution, minimizing blind spots and providing seamless connectivity.

Our omnidirectional fiberglass antennas are constructed from top-quality materials to ensure durability and long-lasting performance even in the toughest conditions. The fiberglass construction not only adds to its sturdiness, but also makes it lightweight, simplifying installation and maintenance.

Product Specification

Electrical Characteristics

Frequency 390-420MHz
S.W.R. <= 2
Antenna Gain 5dBi
Efficiency ≈83%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 26-30°
Impedance 50 Ohm
Max Power 100W

Material & Mechanical Characteristics

Connector Type N connector
Dimension Φ32*1800mm
Weight 1.55Kg
Radome material Fiberglass

Environmental

Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground

Antenna Passive Parameter

VSWR

VSWR

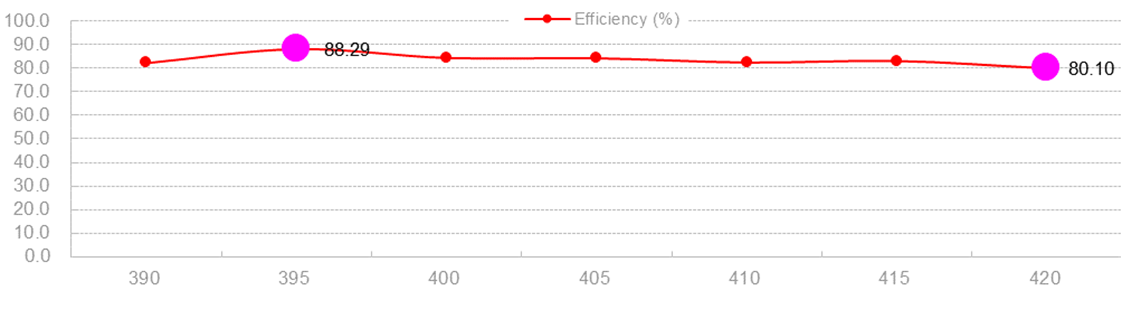

Efficiency & Gain

Frequency(MHz)

390

395

400

405

410

415

420

Gain (dBi)

5.3

5.5

4.9

4.8

5.0

5.0

4.8

Efficiency (%)

82.4

88.3

84.6

84.4

82.6

83.2

80.1

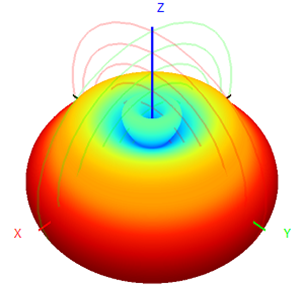

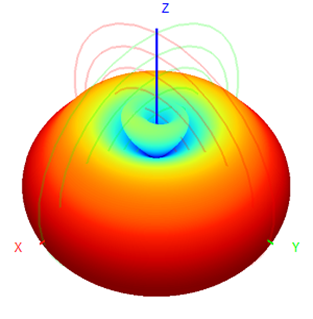

Radiation Pattern



3D

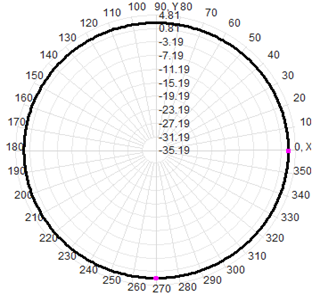

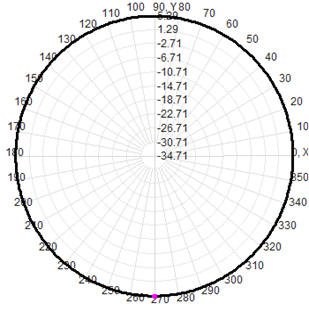

2D-Horizontal

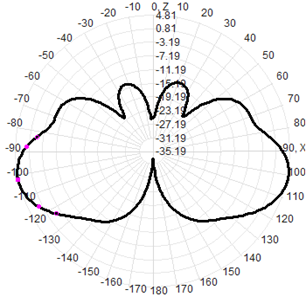

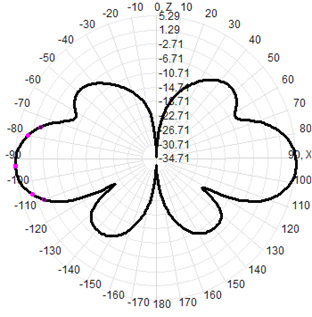

2D-Vertical

390MHz



405MHz



420MHz
