Omnidirectional fiberglass antenna 900-930Mhz 4.5dB

Short Description:

Frequency: 900-930MHz

Gain: 4.5dBi

N connector

IP67 Waterproof

Dimension: Φ20*600mm


Product Detail

Product Tags

Product Introduction

This fiberglass omnidirectional outdoor antenna delivers outstanding performance and reliability. It is designed for the 900-930MHz frequency band and can be widely used in industrial, commercial and agricultural environments.
The antenna's high peak gain is 4.5dBi, which means it can provide a larger signal range and coverage area than ordinary omnidirectional antennas. This makes it suitable for applications that require longer communication distances or need to cover large areas.
The antenna features a UV-resistant fiberglass housing, providing excellent durability and corrosion resistance. This means it can be used in a variety of harsh environments, including high and low temperatures, moisture and corrosive environments. In addition, it has an IP67 waterproof rating and can work safely in environments contaminated by rainwater and other liquids.
This antenna uses N connector, which is a common connector type with good mechanical and electrical characteristics to ensure stable signal transmission. If customers have other connector requirements, we can also customize them according to customer requirements. We pay great attention to our customers' needs and strive to provide the best connection solutions.
Whether used in ISM, WLAN, RFID, SigFox, Lora or LPWA networks, this fiberglass omnidirectional outdoor antenna can provide excellent performance and reliability to meet the needs of different applications. Whether in cities or rural areas, it provides stable signal coverage, making communications smoother and more reliable.



Product Specification

Electrical Characteristics
Frequency 900-930MHz
S.W.R. <= 1.5
Antenna Gain 4.5dBi
Efficiency ≈87%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 35°
Impedance 50 Ohm
Max Power 50W
Material & Mechanical Characteristics
Connector Type N connector
Dimension Φ20*600±5mm
Weight 0.235Kg
Radome material Fiberglass
Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground



Antenna Passive Parameter

VSWR

60CM-915

Efficiency & Gain

Frequency(MHz)

900.0

905.0

910.0

915.0

920.0

925.0

930.0

Gain (dBi)

4.0

4.13

4.27

4.44

4.45

4.57

4.55

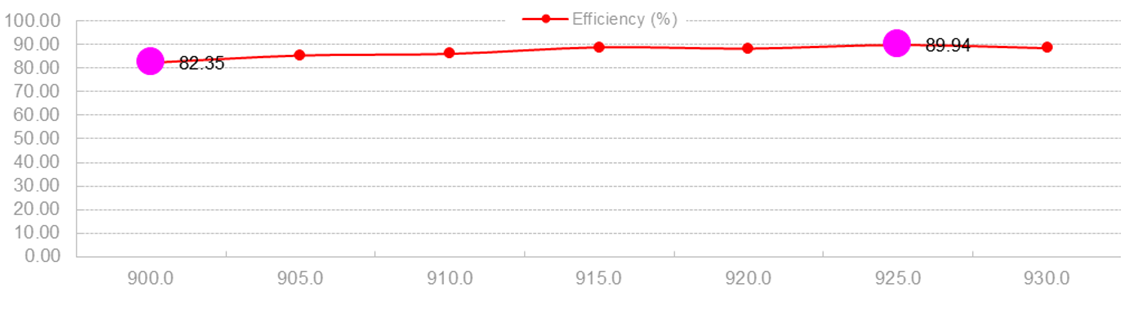

Efficiency (%)

82.35

85.46

86.14

88.96

88.38

89.94

88.56



Radiation Pattern



3D

2D-Horizontal

2D-Vertical

900MHz



915MHz



930MHz
