Omnidirectional fiberglass Antenna 915MHz 2dBi

Short Description:

Frequency: 900-930MHz

Gain: 2dBi

N connector

IP67 Waterproof

Dimension: Φ16*200mm

Send email to us Download as PDF

Product Detail

Product Tags

Product Introduction

This is a fiberglass omni-directional indoor/outdoor antenna, operating in 915 MHz ISM bad. The antenna has an 2dBi peak gain, providing a large coverage area. Typical applications are in ISM, WLAN, RFID, SigFox, Lora and LPWA networks.
The UV resistant fiberglass housing enables the antenna to be utilized in all kinds of harsh environments, making it more robust and safer than traditional whip antennas.

Product Specification

Electrical Characteristics
Frequency	900-930MHz
Impedance	50 Ohm
S.W.R.	<1.5
Gain	2dBi

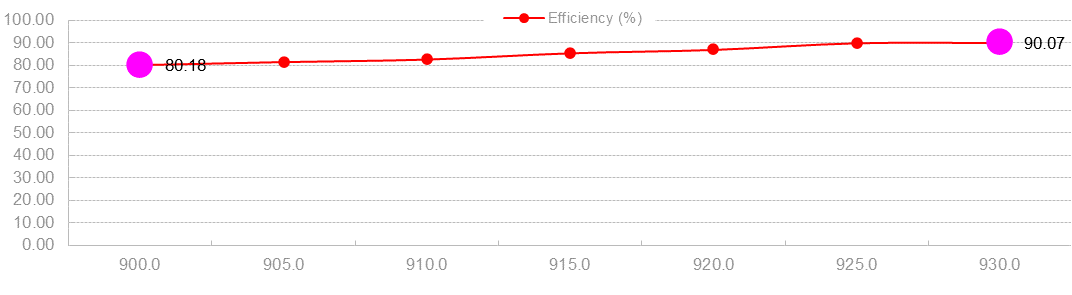

Efficiency	≈85%
Polarization	Linear
Horizontal Beamwidth	360°
Vertical Beamwidth	70°±5°
Max Power	50W
Material & Mechanical Characteristics
Connector Type	N connector
Dimension	Φ16*200mm
Weight	0.09Kg
Radome Materials	Fiberglass
Environmental
Operation Temperature	- 40 ˚C ~ + 80 ˚C
Storage Temperature	- 40 ˚C ~ + 80 ˚C
