Outdoor Directional Flat Panel antenna 3700-4200MHz 14 dBi SMA Connector
Product Introduction
UWB Flat Panel Antenna. This antenna has a frequency range of 3700-4200MHz and has an excellent 14dBi gain.
We also use fireproof and anti-static ABS material to make the shell to ensure the durability and safety of the product.
The antenna is equipped with an SMA connector for easy and fast installation and use. At the same time, we can also customize according to customer requirements to meet more needs and application scenarios.
Our UWB flat panel antenna is very suitable for ultra-wideband UWB personnel positioning and UWB mine coal mine positioning systems. With the advantages of high gain and frequency range, it can improve positioning accuracy, expand positioning range, and bring users a more accurate and extensive positioning experience.
If you are interested in our products or have any questions, please feel free to contact us. We will wholeheartedly provide you with high-quality products and professional services.
Product Specification
|
Electrical Characteristics |
|
| Frequency | 3700-4200MHz |
| S.W.R. | <= 1.8 |
| Antenna Gain | 14dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 37-41° |
| Vertical Beamwidth | 31-41° |
| F/B | >23dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
|
Material & Mechanical Characteristics |
|
| Connector Type | SMA connector |
| Dimension | 140*120*25mm |
| Radome material | ABS |
| Weight | 0.37Kg |
|
Environmental |
|
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
Antenna Passive Parameter
VSWR
Gain
| Frequency (MHz) |
3700.0 |
3750.0 |
3800.0 |
3850.0 |
3900.0 |
3950.0 |
4000.0 |
4050.0 |
4100.0 |
4150.0 |
4200.0 |
| Gain (dBi) |
12.279 |
12.139 |
12.294 |
12.342 |
12.884 |
13.190 |
13.462 |
13.360 |
13.500 |
13.556 |
13.694 |
Radiation Pattern
|
|

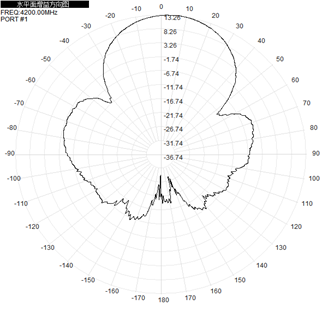

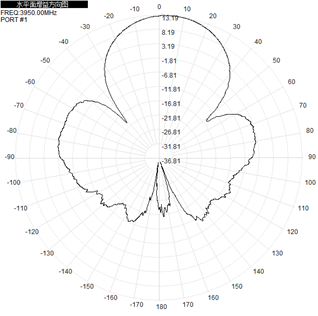

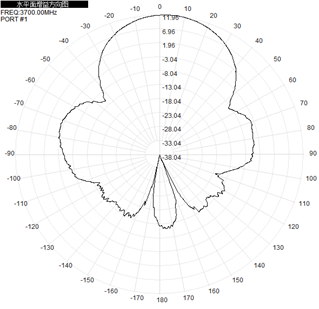

2D-Horizontal |

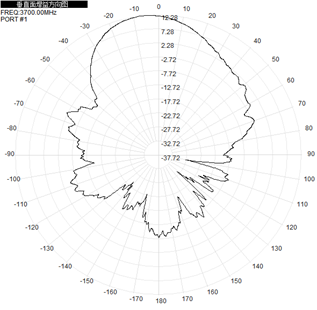

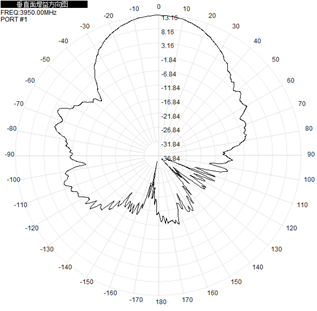

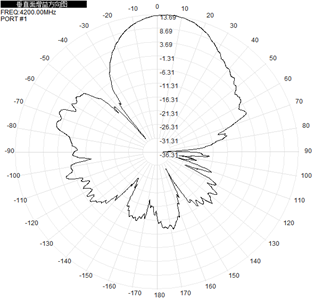

2D-Vertical |

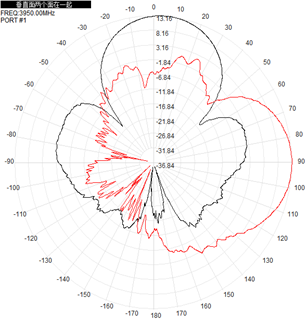

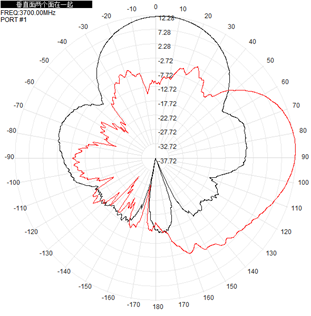

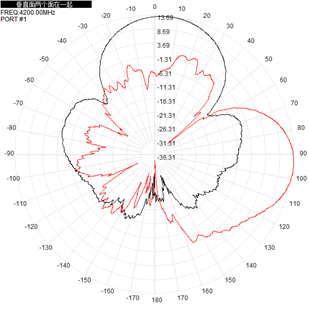

Horizontal & Vertical |
|
3700MHz |
 |
 |
 |
|
3950MHz |
 |
 |
 |
|
4200MHz |
 |
 |
 |
