Outdoor Flat Panel Antenna 2.4&5.8GHz 12-17dBi 290x205x40
Product Introduction
This is a professional quality antenna designed primarily for MIMO point-to-multipoint and point-to-point applications in the 2.4 GHz and 5.8GHz frequency bands.
This aesthetically pleasing antenna features a heavy-duty UV-resistant plastic radome ideal for all-weather indoor and outdoor operation. This antenna is supplied with a tilt and swivel mast mount kit. This allows quick installation at various degrees of up/down tilt for easy alignment.
Application:
2.4/5.8 GHz Indoor/Outdoor Wireless LAN systems
Hospitality, Industrial, Municipality
Product Specification
| Electrical Characteristics | ||||
| Port |
Port1 |
Port2 |
||
| Frequency | 2400-2500MHz | 5150-5850MHz | 2400-2500MHz | 5150-5850MHz |
| S.W.R. | <2.0 | <2.5 | <2.0 | <2.5 |
| Antenna Gain | 12dBi | 17dBi | 12dBi | 17dBi |
| Polarization | Vertical | Vertical | Vertical | Vertical |
| Horizontal Beamwidth | 50±3° | 25±3° | 50±3° | 25±3° |
| Vertical Beamwidth | 50±3° | 20±3° | 50±3° | 20±3° |
| F/B | >25dB | >25dB | >25dB | >25dB |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Max. Power | 50W | 50W | 50W | 50W |
| Material & Mechanical Characteristics | ||||
| Connector Type | N connector | |||
| Dimension | 290*205*40mm | |||
| Radome material | ASA | |||
| Mount Pole | ∅30-∅75 | |||
| Weight | 1.5Kga | |||
| Environmental | ||||
| Operation Temperature | - 40 ˚C ~ + 85 ˚C | |||
| Storage Temperature | - 40 ˚C ~ + 85 ˚C | |||
| Operation Humidity | ＜95% | |||
| Rated Wind Velocity | 36.9m/s | |||
Antenna Passive Parameter

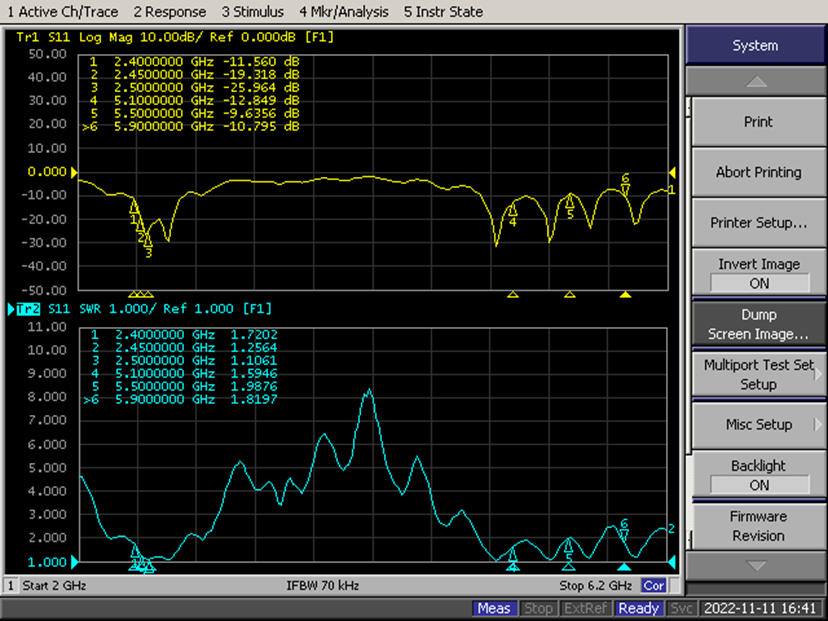

VSWR
Port1
Port2
Efficiency & Gain
|
Port 1 |
|
Port 2 |
||
|
Frequency(MHz) |
Gain(dBi) |
Frequency(MHz) |
Gain(dBi) |
|
|
2400 |
12.084 |
2400 |
12.016 |
|
|
2410 |
12.025 |
2410 |
12.063 |
|
|
2420 |
12.094 |
2420 |
12.072 |
|
|
2430 |
12.074 |
2430 |
12.166 |
|
|
2440 |
12.053 |
2440 |
12.138 |
|
|
2450 |
12.071 |
2450 |
12.127 |
|
|
2460 |
12.082 |
2460 |
12.153 |
|
|
2470 |
12.12 |
2470 |
12.093 |
|
|
2480 |
12.134 |
2480 |
12.169 |
|
|
2490 |
12.18 |
2490 |
12.2 |
|
|
2500 |
12.287 |
2500 |
12.32 |
|
|
|
|
|
|
|
|
5100 |
17.536 |
5100 |
17.143 |
|
|
5150 |
17.618 |
5150 |
17.254 |
|
|
5200 |
17.237 |
5200 |
17.124 |
|
|
5250 |
17.204 |
5250 |
16.69 |
|
|
5300 |
17.17 |
5300 |
16.617 |
|
|
5350 |
17.345 |
5350 |
16.232 |
|
|
5400 |
17.551 |
5400 |
16.688 |
|
|
5450 |
17.12 |
5450 |
17.208 |
|
|
5500 |
16.4 |
5500 |
17.143 |
|
|
5550 |
16.534 |
5550 |
17.237 |
|
|
5600 |
16.839 |
5600 |
17.071 |
|
|
5650 |
16.99 |
5650 |
16.793 |
|
|
5700 |
17.308 |
5700 |
16.964 |
|
|
5750 |
16.9 |
5750 |
16.055 |
|
|
5800 |
16.339 |
5800 |
15.668 |
|
|
5850 |
16.095 |
5850 |
15.461 |
|
|
5900 |
16.032 |
5900 |
15.921 |
|

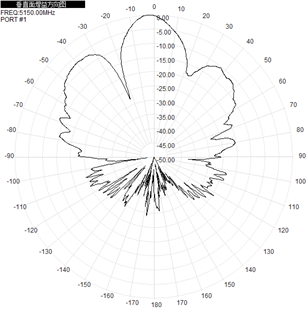

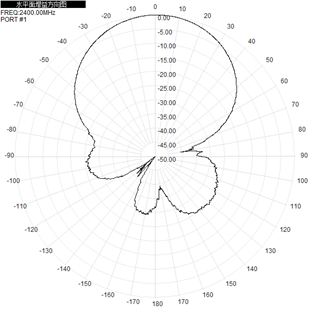

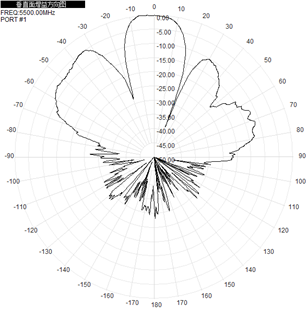

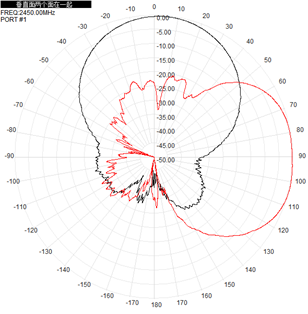

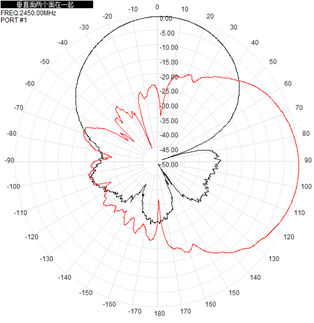

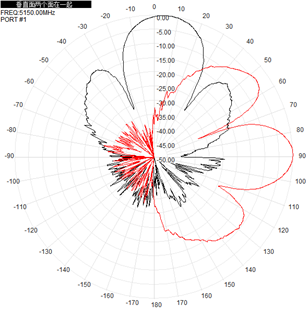

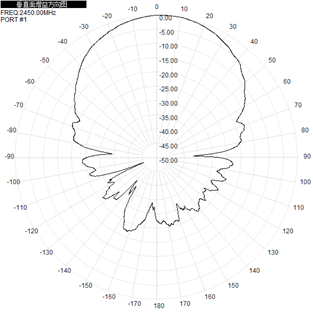

Radiation Pattern

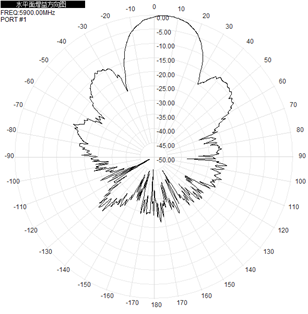

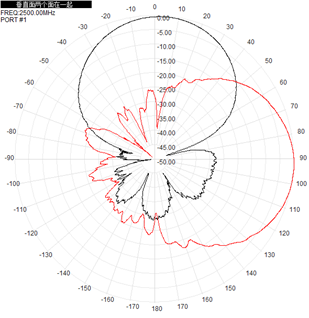

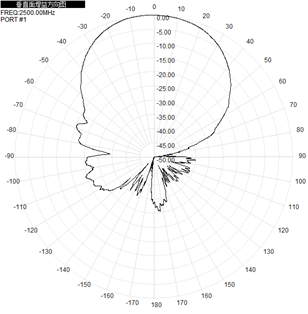

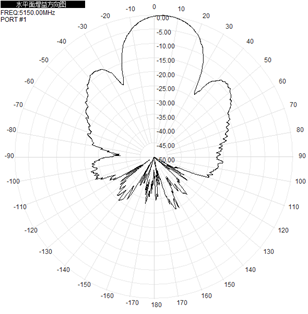

| Port 1 |

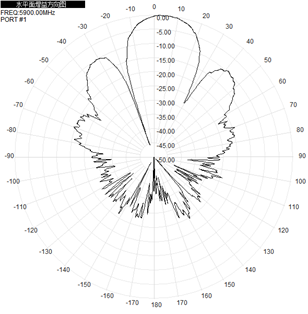

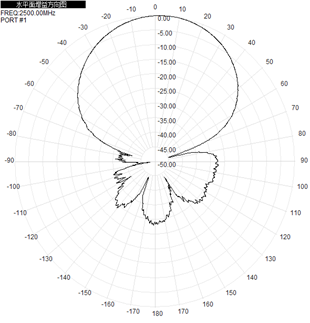

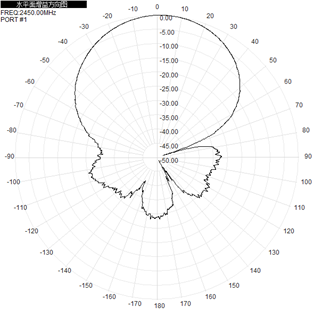

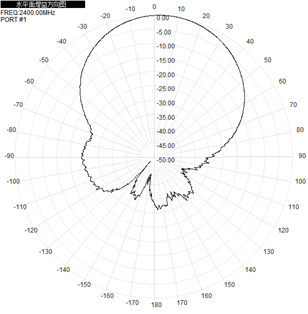

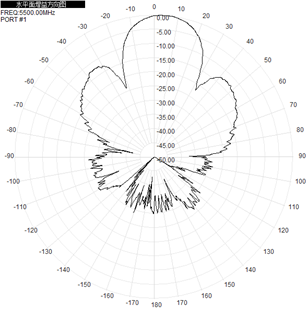

2D-Horizontal |

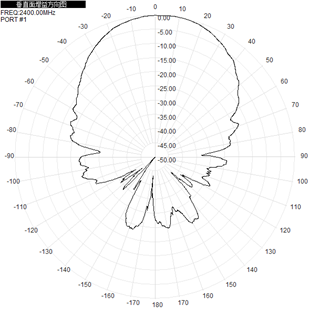

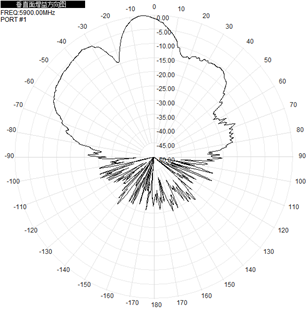

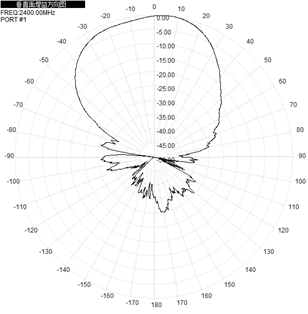

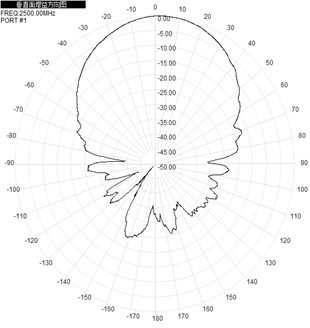

2D-Vertical |

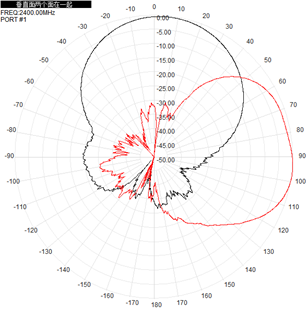

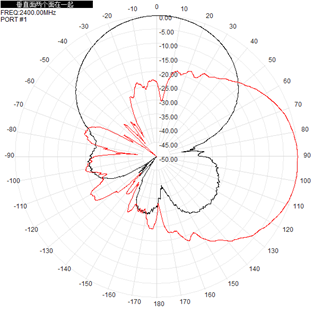

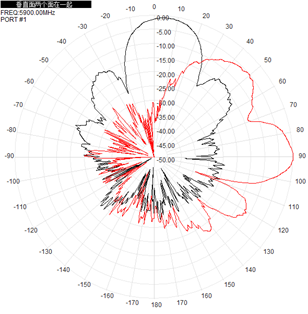

Horizontal & Vertical |
|
2400MHz |
 |
 |
 |
|
2450MHz |
 |
 |
 |
|
2500MHz |
 |
 |
 |
| Port 1 |

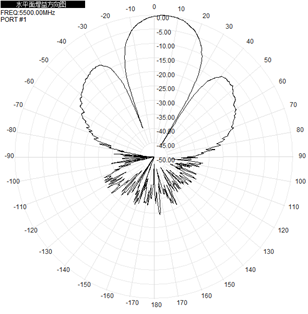

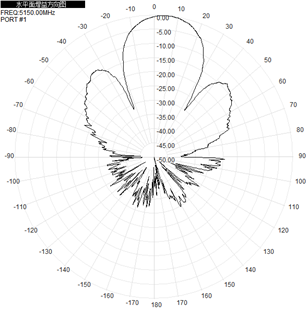

2D-Horizontal |

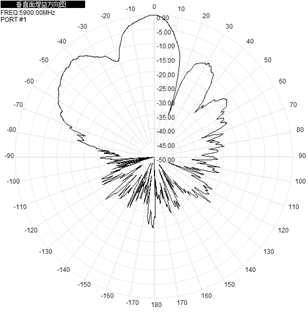

2D-Vertical |

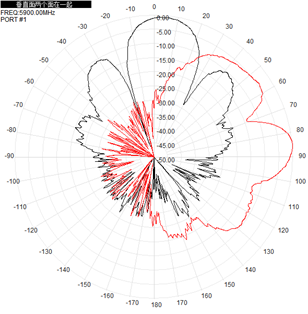

Horizontal & Vertical |
|
5150MHz |
 |
 |
 |
|
5550MHz |
 |
 |
 |
|
5850MHz |
 |
 |
 |
| Port 2 |
2D-Horizontal |
2D-Vertical |
Horizontal & Vertical |
|
2400MHz |
 |
 |
 |
|
2450MHz |
 |
 |
 |
|
2500MHz |
 |
 |
 |
| Port 2 |
2D-Horizontal |
2D-Vertical |
Horizontal & Vertical |
|
5150MHz |
 |
 |
 |
|
5550MHz |
 |
 |
 |
|
5850MHz |
 |
 |
 |
