Outdoor IP67 Fiberglass Antenna 824-894MHz Antenna 2dBi 20×250

Short Description:

Frequency: 824-894MHz

Gain: 2dBi

N connector

IP67 Waterproof

Dimension: Φ20*250mm


Product Detail

Product Tags

Product Introduction

Our 868MHz fiberglass antenna has high gain capability up to 2dBi, ensuring enhanced signal strength and improved performance in challenging environments. Whether you're in a remote location or a dense urban environment, you can rely on this antenna to provide you with a stable and reliable wireless connection.
The versatility of our 868MHz fiberglass antennas makes them suitable for a wide range of applications in various fields. The antenna is ideal for smart meters, smart security systems, environmental monitoring devices, and the growing field of the Industrial Internet of Things (IoT). In addition, it can find practical use in many other applications such as agricultural monitoring, irrigation control, and livestock monitoring.
Plus, the 868MHz Fiberglass Antenna is quick and easy to install, allowing you to set it up and start experiencing its benefits in no time. Its lightweight and compact design further enables it to be easily integrated into your existing system, making it ideal for both indoor and outdoor installations.

Product Specification

Electrical Characteristics
Frequency 824-894MHz
Impedance 50 Ohm
S.W.R. <2
Gain 2dBi
Efficiency ≈76%
Horizontal Beamwidth 360°
Vertical Beamwidth 83-93°
Polarization Linear
Max Power 50W
Material & Mechanical Characteristics
Connector Type N connector
Dimension Φ20*250mm
Weight 0.28Kg
Radome material Fiberglass
Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C



Antenna Passive Parameter

VSWR

824.849.869.894

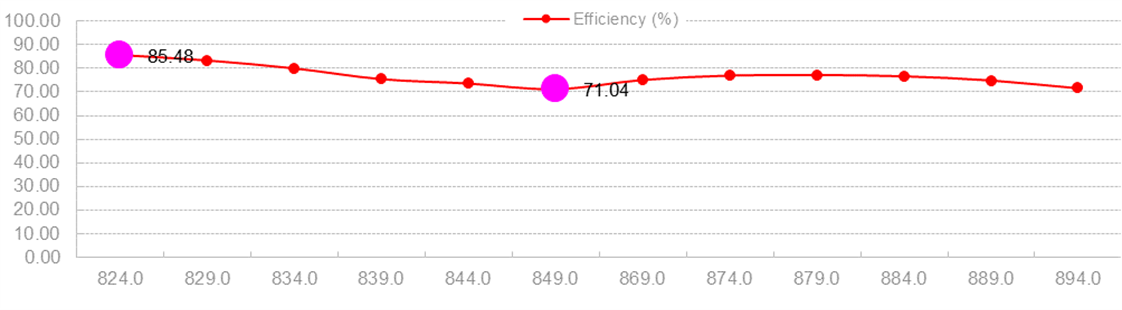

Efficiency & Gain

Frequency(MHz)

824.0

829.0

834.0

839.0

844.0

849.0

Gain (dBi)

1.88

1.73

1.55

1.33

1.24

1.14

Efficiency (%)

85.48

83.22

79.87

75.30

73.43

71.04

Frequency(MHz)

869.0

874.0

879.0

884.0

889.0

894.0

Gain (dBi)

1.68

1.85

1.91

1.92

1.85

1.72

Efficiency (%)

74.95

76.83

77.04

76.49

74.71

71.43

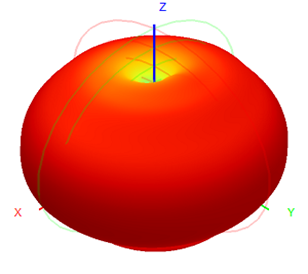

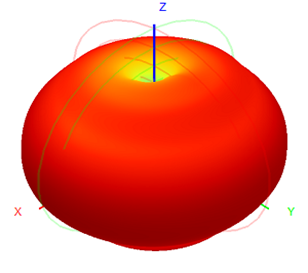

Radiation Pattern

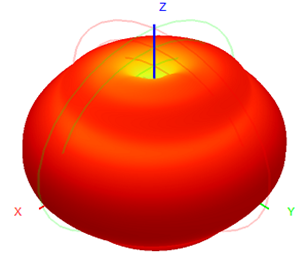

3D

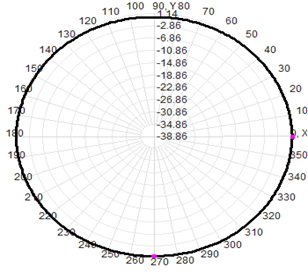

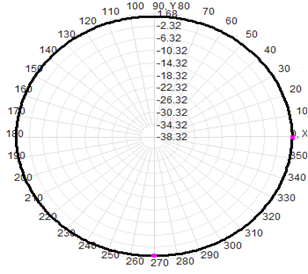

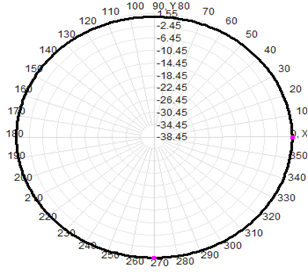

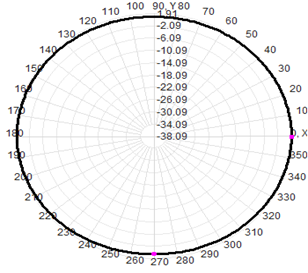

2D-Horizontal

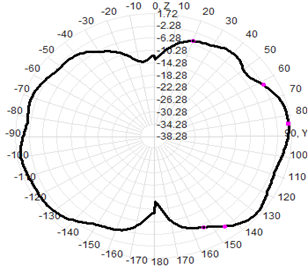

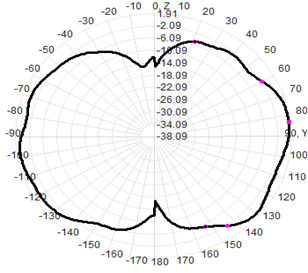

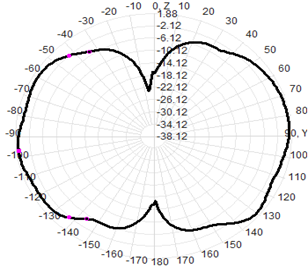

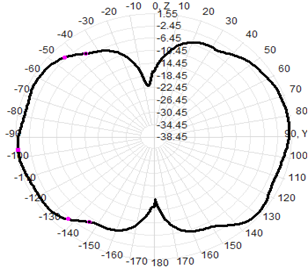

2D-Vertical

824MHz



834MHz



849MHz

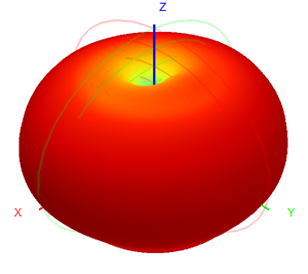

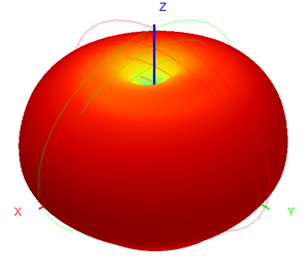

3D

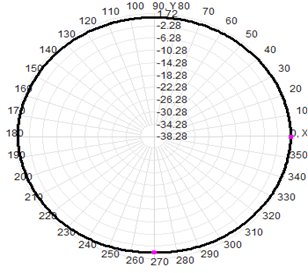

2D-Horizontal

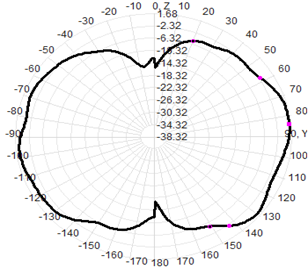

2D-Vertical

869MHz



879MHz



894MHz
