Outdoor IP67 Fiberglass Antenna 868MHz Antenna 1.5dBi 18.5×240

Short Description:

Frequency: 868MHz

Gain: 1.5dBi

N connector

IP67 Waterproof

Dimension: Φ18.5*240mm


Product Detail

Product Tags

Product Introduction

Our 868MHz fiberglass antenna has high gain capability up to 1.5dBi, ensuring enhanced signal strength and improved performance in challenging environments. Whether you're in a remote location or a dense urban environment, you can rely on this antenna to provide you with a stable and reliable wireless connection.
The versatility of our 868MHz fiberglass antennas makes them suitable for a wide range of applications in various fields. The antenna is ideal for smart meters, smart security systems, environmental monitoring devices, and the growing field of the Industrial Internet of Things (IoT). In addition, it can find practical use in many other applications such as agricultural monitoring, irrigation control, and livestock monitoring.
Plus, the 868MHz Fiberglass Antenna is quick and easy to install, allowing you to set it up and start experiencing its benefits in no time. Its lightweight and compact design further enables it to be easily integrated into your existing system, making it ideal for both indoor and outdoor installations.

Product Specification

Electrical Characteristics
Frequency 868MHz
Impedance 50 Ohm
S.W.R. <1.5
Gain 1.5dBi
Efficiency ≈72%
Horizontal Beamwidth 360°
Vertical Beamwidth 87°
Polarization Linear
Max Power 50W
Material & Mechanical Characteristics
Connector Type N connector
Dimension Φ18.5*240mm
Weight 0.134Kg
Radome material Fiberglass
Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C



Antenna Passive Parameter

VSWR

33-868

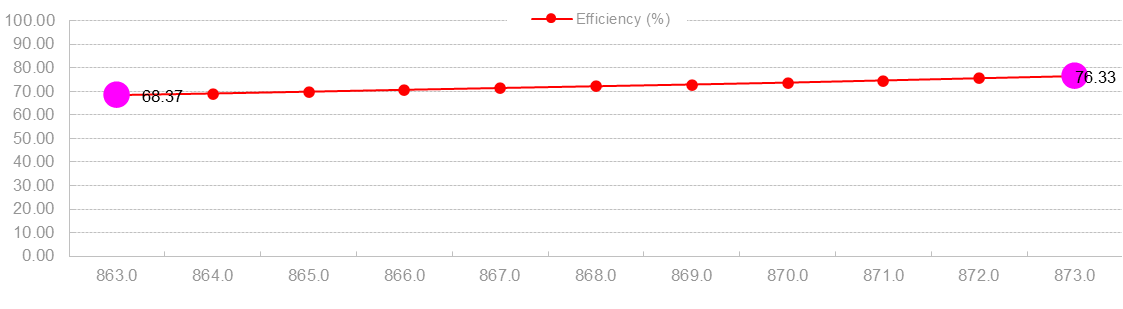

Efficiency & Gain

Frequency(MHz)

863.0

864.0

865.0

866.0

867.0

868.0

869.0

870.0

871.0

872.0

873.0

Gain (dBi)

1.36

1.38

1.40

1.42

1.44

1.46

1.48

1.50

1.53

1.55

1.56

Efficiency (%)

68.37

69.06

69.83

70.61

71.37

72.10

72.84

73.62

74.54

75.46

76.33



Radiation Pattern



3D

2D-Horizontal

2D-Vertical

863MHz



868MHz



873MHz
