Outdoor IP67 FRP Antenna Fiberglass 2.4Ghz WIFI 8dBi 570mm
Product Introduction
One of the outstanding features of our fiberglass antennas is their high gain capability. With enhanced signal reception, you can now experience a stronger, more stable connection even in areas with weak signal coverage. Say goodbye to frustrating network outages and enjoy uninterrupted browsing and streaming.
The antenna is designed for outdoor use and is completely waterproof. No need to worry about damage from rain or any other harsh weather conditions. Its rugged construction ensures it can withstand all-weather operation in a variety of environments.
The omnidirectional design of our fiberglass antennas provides 360-degree signal reception. This means it can receive signals from all directions without constant adjustment or repositioning. No matter where you are, it's easy to experience seamless connectivity.
The versatility of our fiberglass antennas is unmatched. It can be used in various applications including WiFi USB Adapter, WiFi Router Hotspot, WiFi Signal Booster Repeater, WiFi Range Extender, Wireless Mini PCI Express PCI-E Network Card, FPV Transmitter.
In conclusion, 2.4Ghz Fiberglass Antenna is the ultimate solution to improve wireless network performance. Its high gain, long range, waterproof and omnidirectional characteristics make it stand out from other antennas on the market. Experience seamless connectivity, extended range and reliability with our fiberglass antennas. Never get enough of upgrading your wireless network.
Product Specification
|
Electrical Characteristics |
|
| Frequency | 2400-2500MHz |
| VSWR | <1.5 |
| Gain | 8dBi |
| Efficiency | 83% |
| Polarization | Linear |
| Horizontal Beamwidth | 360 ˚ |
| Vertical Beamwidth | 15 °±2 ° |
| Impedance | 50 Ohm |
| Max. Power | 50W |
|
Material & & Mechanical |
|
| Connector Type | N type connector |
| Dimension | Φ18.5*570mm |
| Weight | 0.275 Kg |
| Rated Wind Velocity | 36.9m/s |
|
Environmental |
|
| Operation Temperature | - 45˚C ~ +85 ˚C |
| Storage Temperature | - 45˚C ~ +85 ˚C |
| Operation Humidity | <95% |
Antenna Passive Parameter

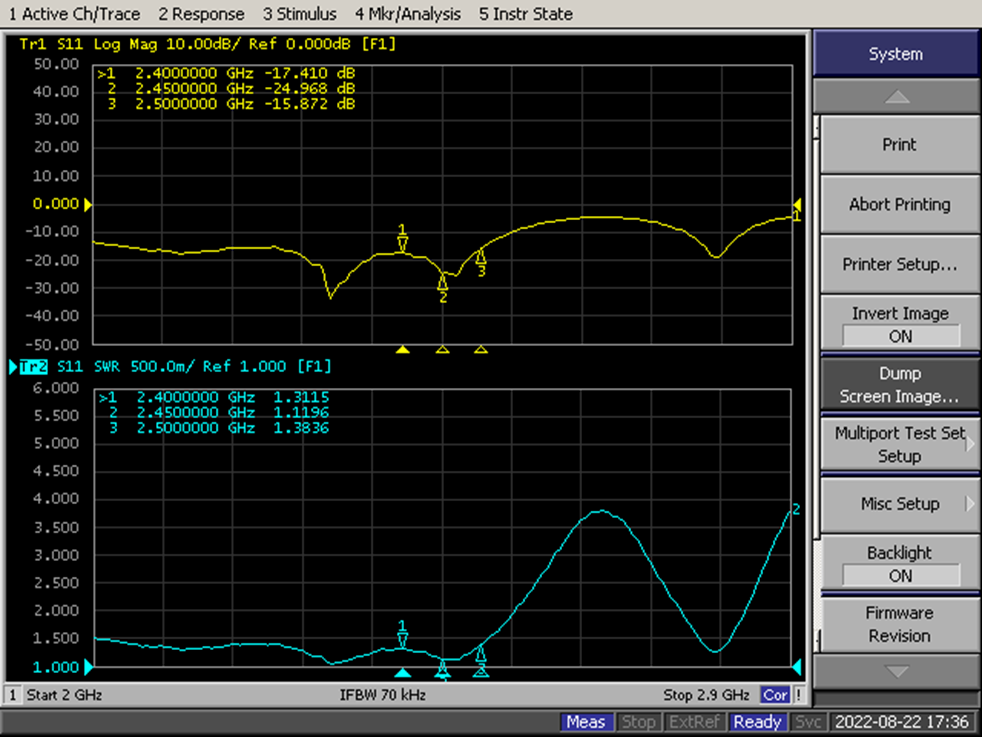

VSWR
Efficiency & Gain
| Frequency(MHz) |
2400.0 |
2410.0 |
2420.0 |
2430.0 |
2440.0 |
2450.0 |
2460.0 |
2470.0 |
2480.0 |
2490.0 |
2500.0 |
| Gain (dBi) |
7.65 |
7.65 |
7.70 |
7.79 |
7.86 |
7.90 |
7.91 |
7.88 |
7.79 |
7.88 |
7.90 |
| Efficiency (%) |
83.58 |
82.46 |
82.10 |
83.08 |
84.18 |
86.11 |
85.06 |
83.42 |
82.20 |
83.02 |
81.80 |
Radiation Pattern
|
3D |
2D-Horizontal |
2D-Vertical |
|
|
2400MHz |
 |
 |
 |
|
2450MHz |
 |
 |
 |
|
2500MHz |
 |
 |
 |
