Outdoor IP67 Omnidirectional Fiberglass Antenna 3550-3700MHz 140×675
Product Introduction
This antenna is specially designed for UAV and UGV communications and telemetry in the 3550-3700MHz frequency range, with an advanced multi-polarized design that minimizes signal degradation and polarization mismatch in real-world moving applications, thus avoiding loss of connectivity and control of the vehicle.
Product Specification
| Electrical Characteristics | ||||
| Port | Port1 | Port2 | Port3 | Port4 |
| Frequency | 3550-3700MHz | 3550-3700MHz | 3550-3700MHz | 3550-3700MHz |
| S.W.R. | <1.8 | <1.8 | <1.8 | <1.8 |
| Antenna Gain | 10dBi | 10dBi | 10dBi | 10dBi |
| Polarization | Linear | Linear | Linear | Linear |
| Horizontal Beamwidth | 360° | 360° | 360° | 360° |
| Vertical Beamwidth | 16-21° | 17-22° | 16-20° | 14-21° |
| Impedance | 50 Ohm | 50 Ohm | 50 Ohm | 50 Ohm |
| Max Power | 50W | 50W | 50W | 50W |
| Material & Mechanical Characteristics | ||||
| Connector Type | N connector | |||
| Dimension | Φ140*675mm | |||
| Weight | 2.8Kg | |||
| Radome material | Fiberglass | |||
| Environmental | ||||
| Operation Temperature | - 40 ˚C ~ + 80 ˚C | |||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |||
| Rated Wind Velocity | 36.9m/s | |||
| Lighting Protection | DC Ground | |||
Antenna Passive Parameter

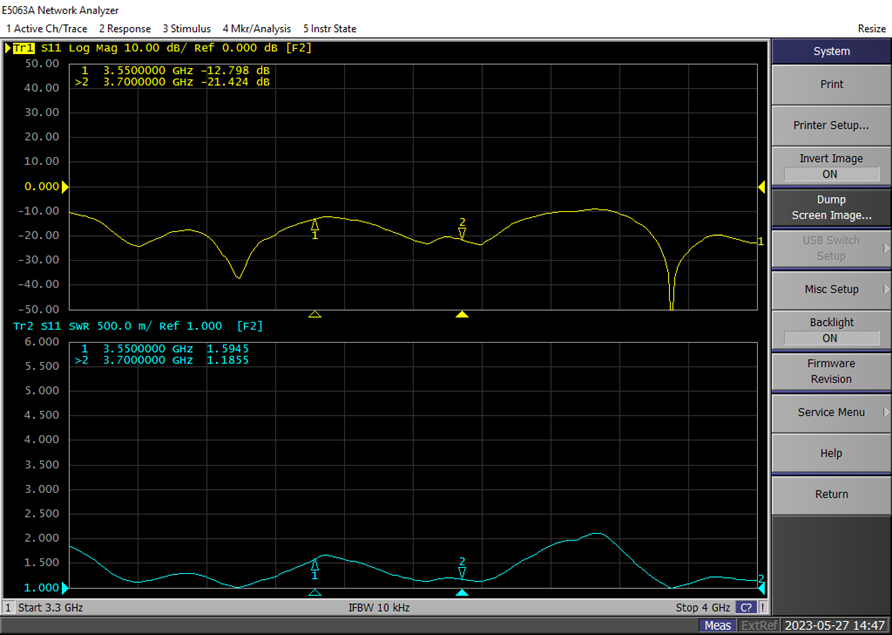

VSWR
Port1
Port2
Port3
Port4
Efficiency & Gain
|
Port 1 |
|
Port 2 |
||
|
Frequency(MHz) |
Gain(dBi) |
Frequency(MHz) |
Gain(dBi) |
|
|
3550.0 |
10.2 |
3550.0 |
9.8 |
|
|
3575.0 |
11.3 |
3575.0 |
10.1 |
|
|
3600.0 |
11.1 |
3600.0 |
10.5 |
|
|
3625.0 |
11.0 |
3625.0 |
10.0 |
|
|
3650.0 |
10.8 |
3650.0 |
10.1 |
|
|
3675.0 |
10.9 |
3675.0 |
10.3 |
|
|
3700.0 |
11.4 |
3700.0 |
11.7 |
|
|
|
|
|
|
|
|
Port 3 |
Port 4 |
|||
|
Frequency(MHz) |
Gain(dBi) |
Frequency(MHz) |
Gain(dBi) |
|
|
3550.0 |
10.8 |
3550.0 |
10.1 |
|
|
3575.0 |
10.5 |
3575.0 |
10.4 |
|
|
3600.0 |
10.1 |
3600.0 |
10.4 |
|
|
3625.0 |
10.4 |
3625.0 |
10.5 |
|
|
3650.0 |
11.5 |
3650.0 |
10.6 |
|
|
3675.0 |
11.0 |
3675.0 |
11.4 |
|
|
3700.0 |
10.4 |
3700.0 |
10.6 |
|
|
3550.0 |
10.8 |
3550.0 |
10.1 |
|
Radiation Pattern
|

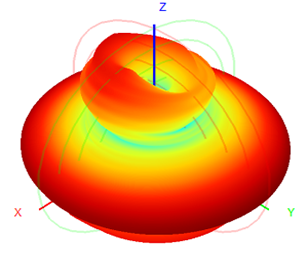

Port1 |

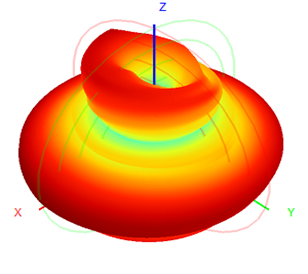

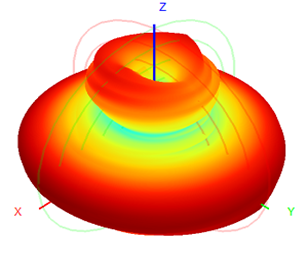

3D |

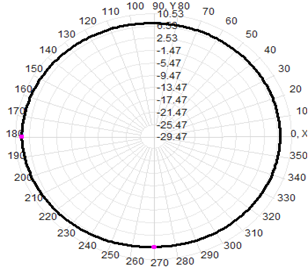

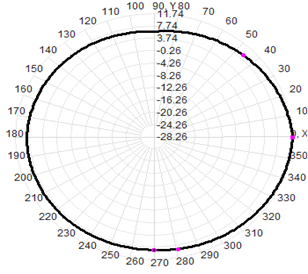

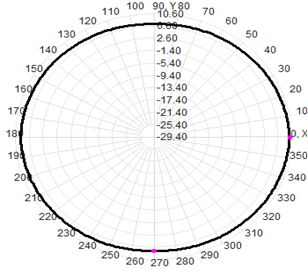

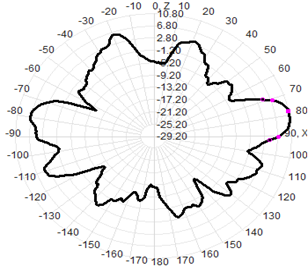

2D-Horizontal |

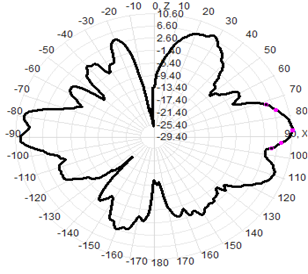

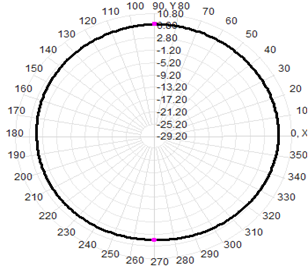

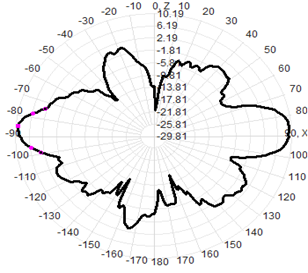

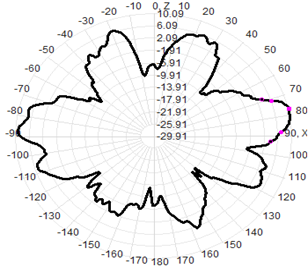

2D-Vertical |
|
3550MHz |
 |
 |
 |
|
3625MHz |
 |
 |
 |
|
3700MHz |
 |
 |
 |
|

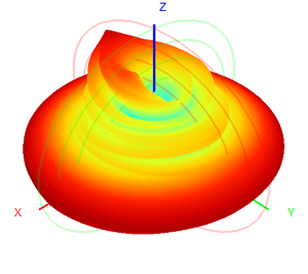

Port2 |

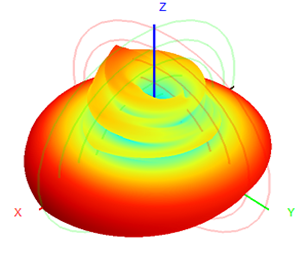

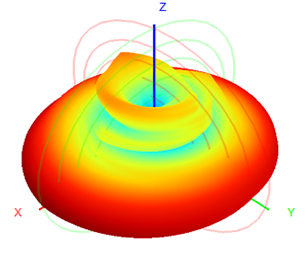

3D |

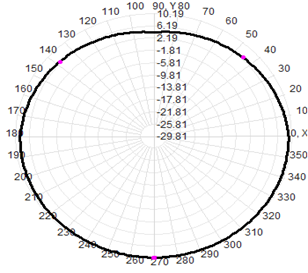

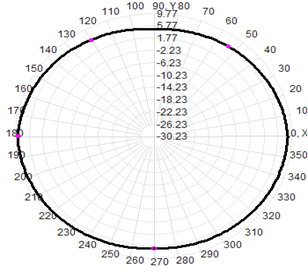

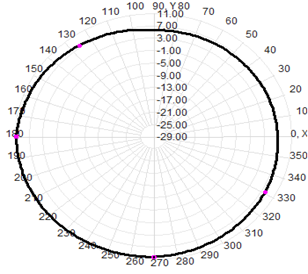

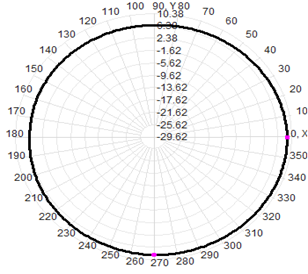

2D-Horizontal |

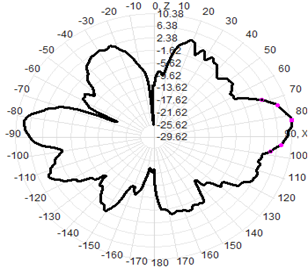

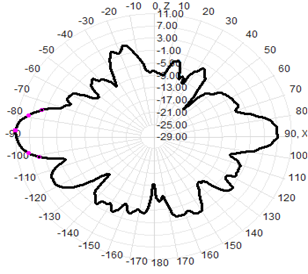

2D-Vertical |
|
3550MHz |
 |
 |
 |
|
3625MHz |
 |
 |
 |
|
3700MHz |
 |
 |
 |
|

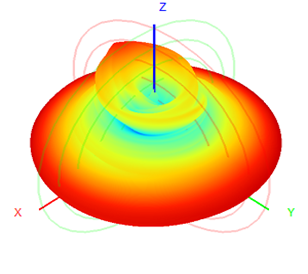

Port3 |

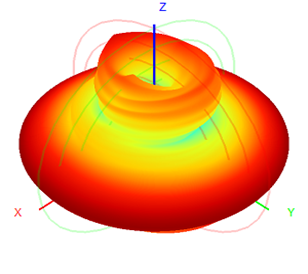

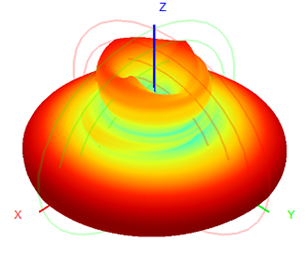

3D |

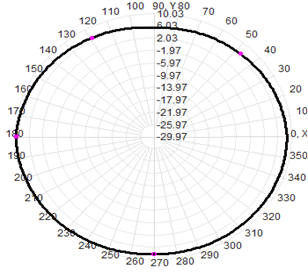

2D-Horizontal |

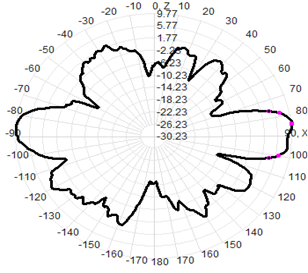

2D-Vertical |
|
3550MHz |
 |
 |
 |
|
3625MHz |
 |
 |
 |
|
3700MHz |
 |
 |
 |
|

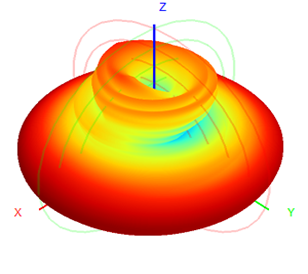

Port4 |
3D |
2D-Horizontal |
2D-Vertical |
|
3550MHz |
 |
 |
 |
|
3625MHz |
 |
 |
 |
|
3700MHz |
 |
 |
 |
