Outdoor IP67 Omnidirectional fiberglass antenna 5.8GHz 10-11dBi 60x600mm

Short Description:

Frequency: 5150-5850MHz

Gain: 10-11dBi

N connector

RG303 Cable

Dimension: Φ60*600mm


Product Detail

Product Tags

Product Introduction

The 5.8GHZ omnidirectional fiberglass antenna has excellent performance. Its gain reaches 11dBi, which means it can provide a more powerful signal enhancement effect and effectively expand the coverage of the WiFi network.
This kind of antenna is suitable for outdoor environments and has the characteristics of high gain, good transmission quality, wide coverage area, and high carrying power. High gain means it can capture and amplify signals better, providing a more stable connection and faster data transfer speeds. Whether used for home networking, or for WiFi coverage in businesses or public places, this antenna can provide reliable transmission quality and wide coverage.
In addition, it also has the advantages of easy erection and strong wind resistance. Outdoor installations often need to withstand a variety of weather conditions and environmental challenges, and this omnidirectional fiberglass antenna is designed to easily handle these challenges, ensuring its stability and durability.
The 5.8GHz WLAN WiFi system is a wireless communication technology that supports the 802.11a standard and can provide high-speed wireless connections. Wireless hotspot coverage allows users to easily access the Internet, whether at home, in the office, or in a public place. At the same time, it also supports wireless bridge and point-to-point long-distance transmission functions, which can build stable wireless links between different locations to meet the different needs of users.

Product Specification

Electrical Characteristics
Port

Port1

Port2

Frequency 5150-5850MHz 5150-5850MHz
S.W.R. <2.0 <2.0
Efficiency ≈50% ≈53%
Antenna Gain 10dBi 11dBi
Polarization Linear Linear
Horizontal Beamwidth 130-360° 50-210°
Vertical Beamwidth 6-8° 6-7°
Impedance 50 Ohm 50 Ohm
Max Power 50W 50W
Material & Mechanical Characteristics
Connector Type N connector
Cable Type RG303 Cable
Dimension Φ60*600mm
Weight 0.6Kg
Radome material Fiberglass
Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s

Antenna Passive Parameter

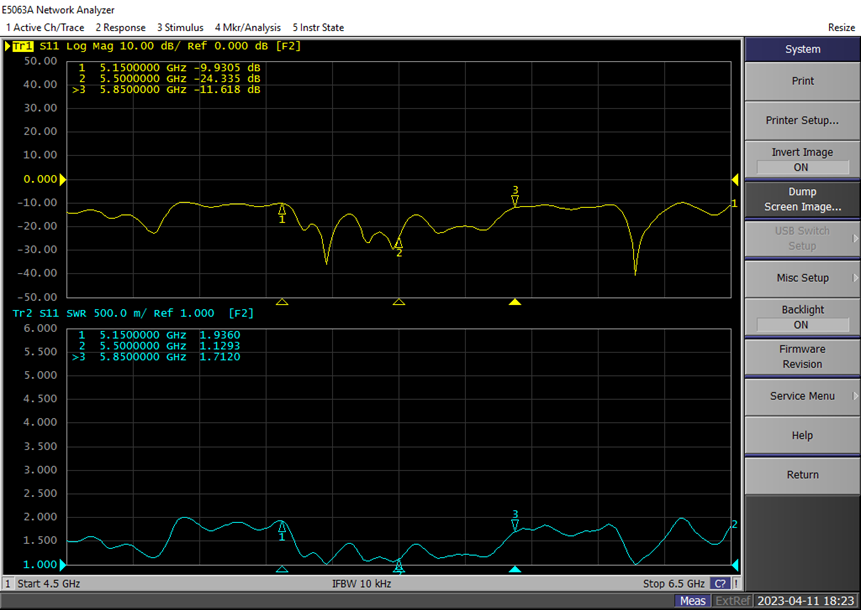

VSWR

Port1

Port2

Efficiency & Gain

Port 1



Port 2

Frequency  (MHz)

Gain (dBi)

Frequency  (MHz)

Gain (dBi)

5150.0

7.09

5150.0

10.38

5200.0

7.74

5200.0

9.94

5250.0

8.23

5250.0

9.94

5300.0

7.63

5300.0

8.69

5350.0

8.30

5350.0

9.58

5400.0

9.72

5400.0

10.35

5450.0

9.31

5450.0

10.75

5500.0

8.89

5500.0

9.63

5550.0

9.33

5550.0

9.31

5600.0

9.53

5600.0

10.92

5650.0

8.82

5650.0

11.51

5700.0

8.29

5700.0

10.55

5750.0

7.92

5750.0

9.30

5800.0

7.96

5800.0

10.92

5850.0

8.16

5850.0

11.13

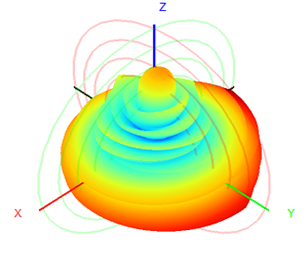

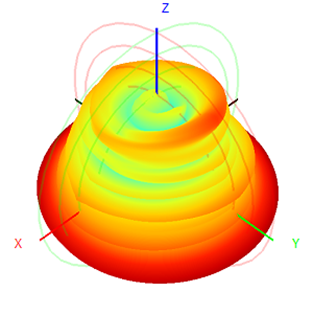

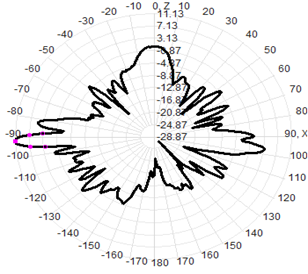

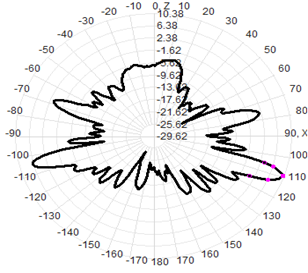

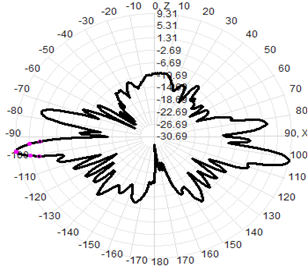

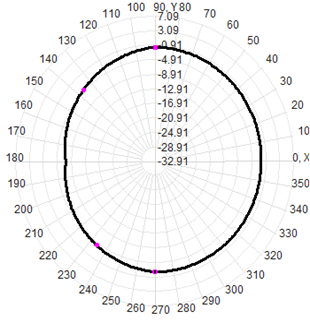

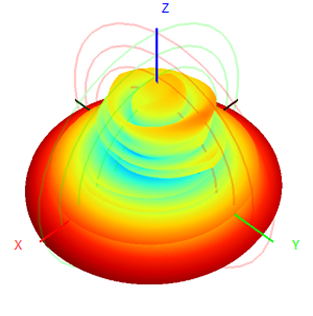

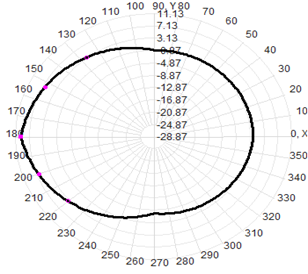

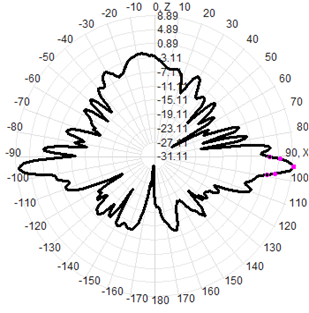

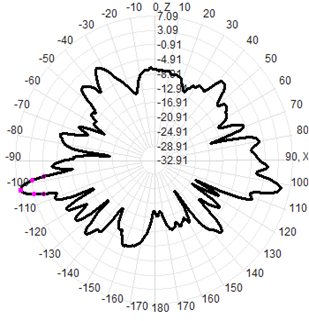

Radiation Pattern

Port 1

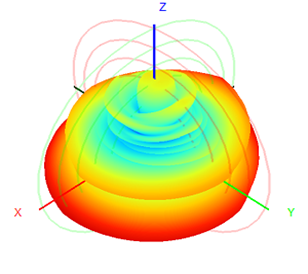

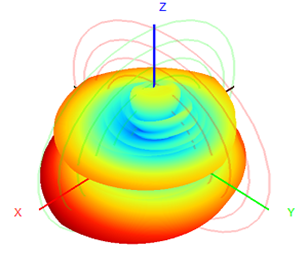

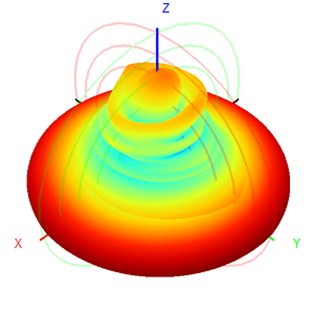

3D

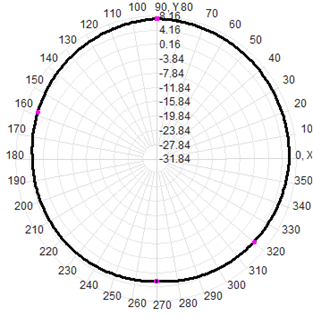

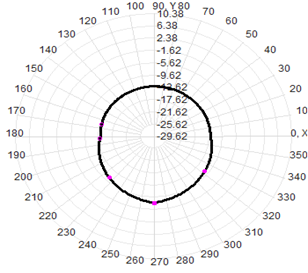

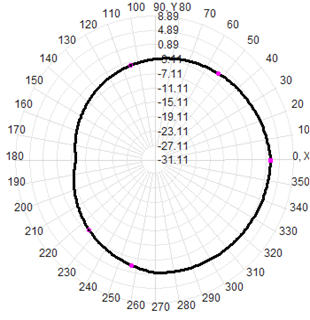

2D-Horizontal

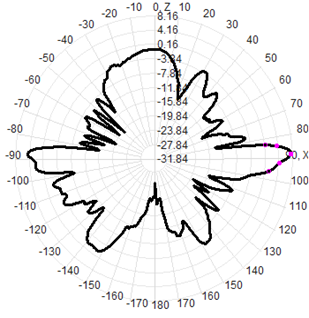

2D-Vertical

5150MHz



5500MHz



5850MHz



Port 2

3D

2D-Horizontal

2D-Vertical

5150MHz



5500MHz



5850MHz
