Outdoor IP67 Omnidirectional Fiberglass Antenna 5.8GHz 9.5dBi 16×300

Short Description:

Frequency: 5150-5850MHz

Gain: 9.5dBi

N connector

IP67 Waterproof

Dimension: Φ16*300mm


Product Detail

Product Tags

Product Introduction

The 5.8GHZ omnidirectional fiberglass antenna has excellent performance. Its gain reaches 9.5dBi, which means it can provide a more powerful signal enhancement effect and effectively expand the coverage of the WiFi network.
This kind of antenna is suitable for outdoor environments and has the characteristics of high gain, good transmission quality, wide coverage area, and high carrying power. High gain means it can capture and amplify signals better, providing a more stable connection and faster data transfer speeds. Whether used for home networking, or for WiFi coverage in businesses or public places, this antenna can provide reliable transmission quality and wide coverage.
In addition, it also has the advantages of easy erection and strong wind resistance. Outdoor installations often need to withstand a variety of weather conditions and environmental challenges, and this omnidirectional fiberglass antenna is designed to easily handle these challenges, ensuring its stability and durability.
The 5.8GHz WLAN WiFi system is a wireless communication technology that supports the 802.11a standard and can provide high-speed wireless connections. Wireless hotspot coverage allows users to easily access the Internet, whether at home, in the office, or in a public place. At the same time, it also supports wireless bridge and point-to-point long-distance transmission functions, which can build stable wireless links between different locations to meet the different needs of users.

Product Specification

Electrical Characteristics
Frequency 5150-5850MHz
Impedance 50 Ohm
S.W.R. <2.0
Antenna Gain 9.5dBi
Efficiency ≈70%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 15°±5°
Max Power 50W
Material & Mechanical Characteristics
Connector Type N connector
Dimension Φ16*300mm
Weight 0.097Kg
Radome material Fiberglass
Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s



Antenna Passive Parameter

VSWR

12

Efficiency & Gain

Frequency(MHz)

5150

5200

5250

5300

5350

5400

5450

5500

5550

5600

5650

5700

5750

5800

5850

Gain (dBi)

8.13

7.58

7.41

7.71

7.52

7.19

7.21

7.70

8.07

8.50

8.76

9.18

9.12

9.14

9.51

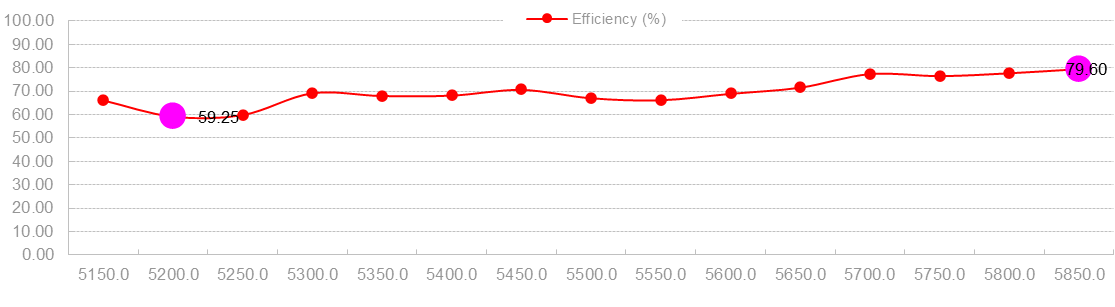

Efficiency (%)

66.24

59.25

59.92

69.26

68.08

68.27

70.70

67.14

66.26

69.03

71.68

77.47

76.62

77.82

79.60

Radiation Pattern



3D

2D-Horizontal

2D-Vertical

5150MHz



5550MHz



5850MHz
