Outdoor RFID antenna 902-928MHz 10 dBi 305x305x25

Short Description:

Frequency: 902-928MHz

Gain: 10dBi

IP67 Waterproof

N connector

Dimension: 305*305*25mm


Product Detail

Product Tags

Product Introduction

This RFID antennas is designed for large-scale coverage in high-capacity, high-throughput environments.
With its wide read range and high-speed RF signal conversion, the antenna ensures fast and accurate data capture even in vast and demanding environments.
Installation is simple as it can be easily mounted on ceilings and walls, and its rugged housing is suitable for both customer-facing and industrial environments. Experience superior reading areas around warehouse shelves, warehouse entrances, and dock decks, anywhere you need to track the movement of boxes and pallets. Your workflow remains smooth, inventory checks remain accurate, and your productivity reaches new heights.
The unique feature of this RFID antenna is its excellent anti-interference performance, which can effectively resist the influence of external interference signals and ensure the accuracy and stability of data reading. Whether in high-density logistics environments or crowded manufacturing floors, performance remains stable. In addition, the antenna has adjustable power output that can be flexibly adjusted to optimize reading performance at different distances and environments. Energy-saving features also extend the life of the antenna and reduce energy consumption.
Additionally, our RFID antennas integrate seamlessly with your existing RFID systems for fast and efficient data transmission. Whether in logistics, warehousing, manufacturing or retail industries, it can quickly capture item identification information and enhance your control capabilities.

Product Specification

Electrical Characteristics
Frequency 902-928MHz
S.W.R. <1.5
Antenna Gain 10dBi
Polarization Linear
Horizontal Beamwidth 63-65°
Vertical Beamwidth 51-54°
F/B >20dB
Impedance 50Ohm
Max. Power 50W
Material & Mechanical Characteristics
Connector Type N connector
Dimension 305*305*25mm
Radome material ABS
Weight 1.6Kg
Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity <95%
Rated Wind Velocity 36.9m/s



Antenna Passive Parameter

VSWR

LINEAR-902-928

Efficiency & Gain

Frequency(MHz)

Gain(dBi)

900

10.6

902

10.7

904

10.7

906

10.8

908

10.8

910

10.8

912

10.8

914

10.7

916

10.6

918

10.5

920

10.4

922

10.3

924

10.1

926

10.0

928

9.9

930

9.9

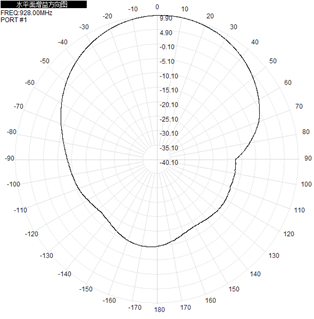

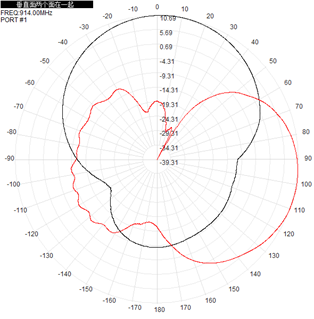

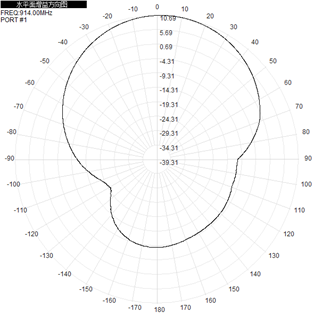

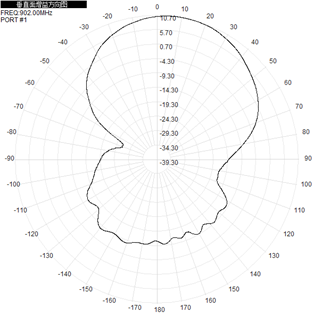

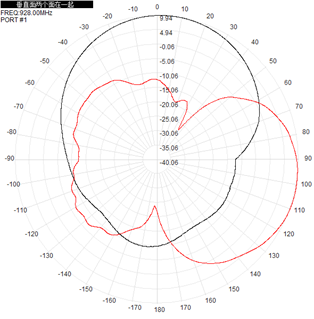

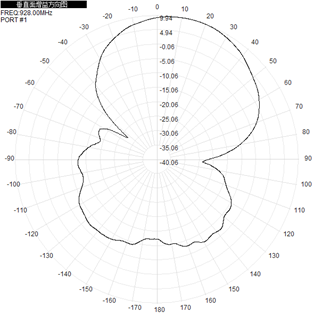

Radiation Pattern



2D-Horizontal

2D-Vertical

Horizontal & Vertical

902MHz



915MHz



928MHz
