Outdoor Waterproof Base Station Antenna 1710-1880MHz 18dBi

Short Description:

Frequency: 1710-1880MHz

Gain: 18dBi

IP67 Waterproof

N connector

Dimension: 900x280x80mm


Product Detail

Product Tags

Product Introduction

This base station antenna is a device specially designed for wireless communications, with a frequency range of 1710-1880MHz and a gain of 18dBi. This means it can provide longer range between devices, improving the range and quality of wireless signals.
The outer shell of this product is made of UPVC material, which has good weather resistance and UV resistance. This means the antenna can be exposed to sunlight for extended periods of time without being damaged by UV rays. This is very important for base stations installed outdoors as they are often exposed to various weather conditions.
In addition, this base station antenna also has IP67 waterproof performance. This means that it can still work normally even if it encounters rain, high humidity, or other sources of water.
All in all, this base station antenna is an efficient and reliable device that not only offers excellent signal transmission performance, but is also UV and waterproof. It is very suitable for outdoor wireless communication scenarios, such as base station deployment in rural areas, urban construction and other places.

Product Specification

Electrical Characteristics
Frequency 1710-1880MHz
S.W.R. <=1.5
Antenna Gain 18dBi
Polarization Vertical
Horizontal Beamwidth 33-38°
Vertical Beamwidth 9-11°
F/B >24dB
Impedance 50Ohm
Max. Power 100W
Material & Mechanical Characteristics
Connector Type N connector
Dimension 900*280*80mm
Radome material Upvc
Mount Pole ∅50-∅90
Weight 7.7Kg
Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity <95%
Rated Wind Velocity 36.9m/s

Antenna Passive Parameter

VSWR

1710-1880-900X280X80-N-K

Gain

Frequency(MHz)

Gain(dBi)

1710

17.8

1720

17.9

1730

18.3

1740

18.3

1750

18.4

1760

18.7

1770

18.2

1780

18.7

1790

18.7

1800

18.7

1810

18.9

1820

18.9

1830

18.9

1840

19.0

1850

18.9

1860

19.0

1870

19.2

1880

19.3

Radiation Pattern

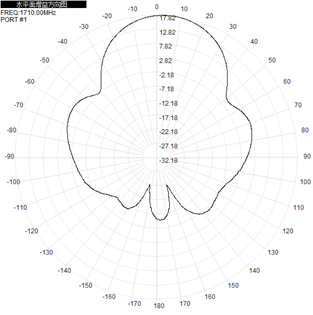

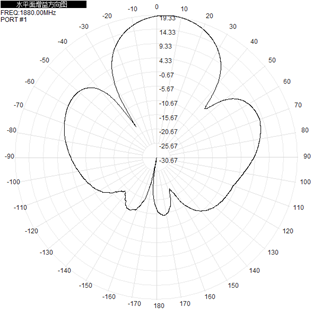

2D-Horizontal

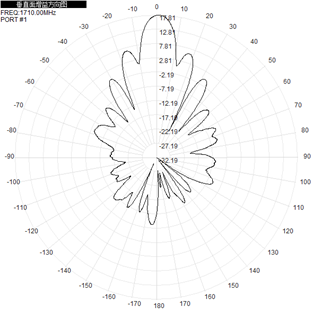

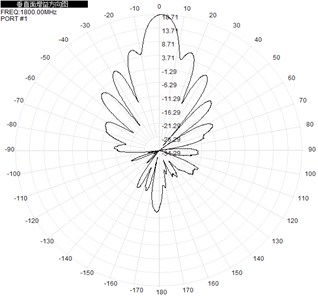

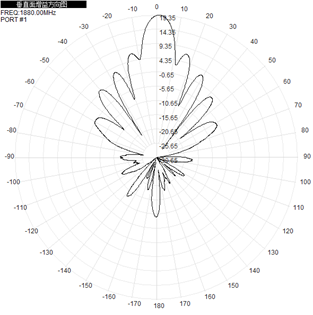

2D-Vertical

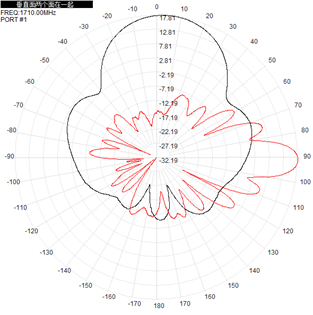

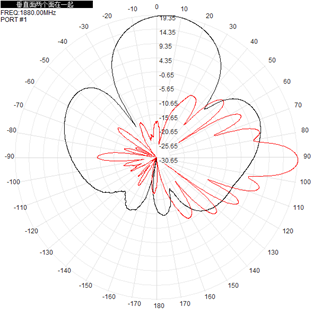

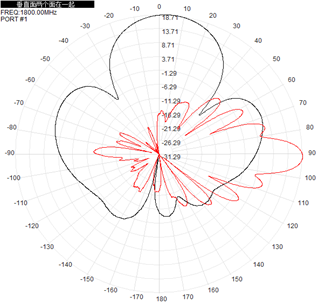

Horizontal & Vertical

1710MHz



1800MHz



1880MHz
